نام محصول:
موتور هیدرولیک پیستون شعاعی
نام انگلیسی:

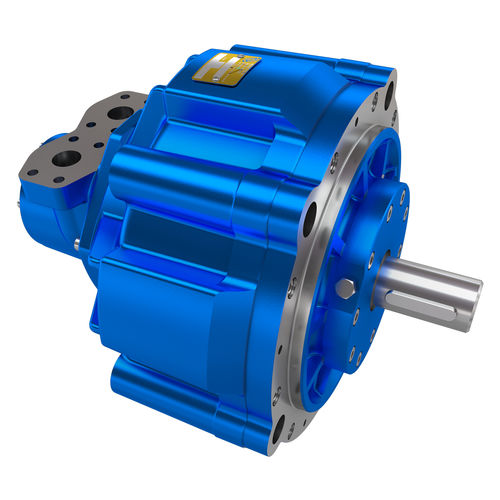

Radial piston hydraulic motor SMA series
برند:
Rotary Power
مشخصات:
The SMA motor is able to satisfy the heaviest duty application. This is a radial piston/eccentric motor with a hydrostatically balanced rotating assembly. The efficient design includes a hardened high tensile steel crankshaft supported on hydrostatic and taper roller bearings.
The SMA can withstand both high mechanical and high hydraulic shock loads offering excellent life and continuous high power use. Speed and power ratings are significantly higher than standard high torque low speed (HTLS) motors.
Standard, high power and industrial versions are available.
Continuous 350 bar and intermittent 490 bar duty as standard.
View Product Features
• Displacements available from 200 – 16,400 cc/rev
• Continuous pressure of 350bar
• Suitable for use with most hydraulic fluids
• Withstands high peak pressures
• Minimal no-load pressure drop even at high speed
• High power options
• Two speed options
• Rotating case options
توضیحات:
Technology
radial piston
Other characteristics
industrial, high-torque, for heavy-duty applications
Pressure
350 bar(5,076 psi)
Rotational speed
Max.: 1,000 rpm(6,283.19 rad.min-1)Min.: 216 rpm(1,357.17 rad.min-1)
Torque
Max.: 261 Nm(192.5 ft.lb)Min.: 3.3 Nm(2.43 ft.lb)
Displacement
Max.: 16,400 cm³(554.55 US fl oz)Min.: 120 cm³(4.06 US fl oz)
