نام محصول:
موتور هیدرولیک مداری
نام انگلیسی:

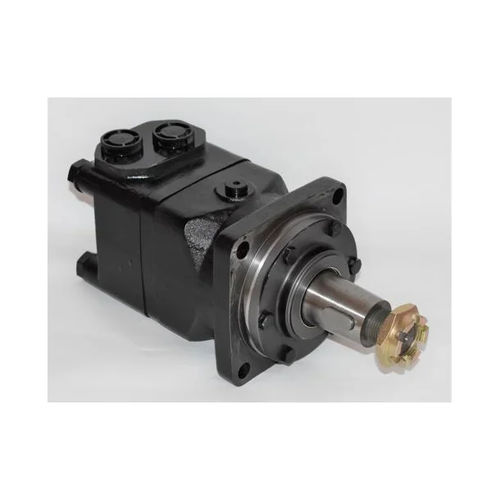

Orbital hydraulic motor MT series
برند:
Taon Hydraulik Komponenter ApS
مشخصات:
Hydraulic orbit motor / orbit motor
MT Series engine adapts the advanced Geroler gear kit design with disc distribution
flow and high pressure. The unit can be delivered to the individual variant in operation
multifunction in accordance with application requirements.
Characteristics:
* Advanced Geroler gear set, which uses low pressure to
start-up, provides smooth and reliable operation and high efficiency.
The output shaft adapts in conical roller bearings that allow high axial and radial
Forces. Can offer high pressure and high torque capabilities in the breadth of applications.
* Advanced design in disc distribution flow, which can automatically compensate in
operation with high volume efficiency and long service life, which provides smooth and reliable operation.
توضیحات:
Technology
orbital
Other characteristics
industrial, flange-mount
Pressure
Max.: 280 bar(4,061 psi)Min.: 130 bar(1,885 psi)
Rotational speed
Max.: 780 rpm(4,900.88 rad.min-1)Min.: 154 rpm(967.61 rad.min-1)
Torque
Max.: 1,665 Nm(1,228.04 ft.lb)Min.: 470 Nm(346.65 ft.lb)
Displacement
Max.: 800 cm³(27.05 US fl oz)Min.: 160 cm³(5.41 US fl oz)
