نام محصول:

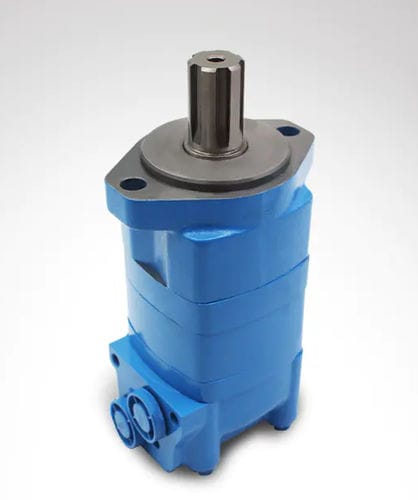

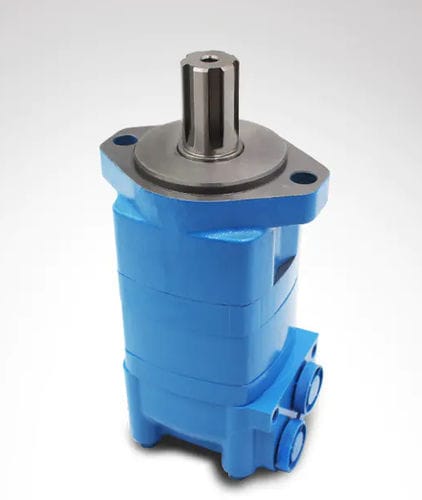

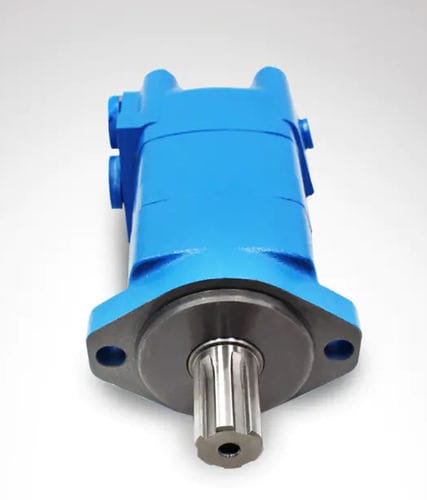

موتور هیدرولیک مداری
نام انگلیسی:
Orbital hydraulic motor BMK2
برند:
Shijiazhuang Hanjiu Hydraulic Co., ltd
مشخصات:
BMK2 new series motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure. The unit
can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable
operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of
high pressure and high torque in the wide of applications.
* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and
long life , provide smooth and reliable operation.
* The new series motor is suitable for vehicles with greater loads and pressure drop.
– Matters needing attention
– Output steering
– The correct use of the motor will directly affect the working life. Therefore, the following basic requirements must be met.
– System requirements
• The system should be equipped with a corresponding oil filter to ensure the cleanliness of the system oil.
• The hydraulic circuit must be equipped with a cooling system to prevent excessive oil temperature.
• Pressure gauges and thermometers must be installed in the oil inlet lines.
• A pressure gauge should be installed in the hydraulic circuit of the hydraulic pump.
توضیحات:
Technology
gear, orbital
Other characteristics
high-pressure, high-torque
Pressure
21 MPa, 26 MPa, 31 MPa
Rotational speed
385 rpm, 577 rpm(2,419.03 rad.min-1, 3,625.4 rad.min-1)
Torque
540 Nm, 665 Nm(398.28 ft.lb, 490.48 ft.lb)
Displacement
193 cm³(6.53 US fl oz)
