نام محصول:

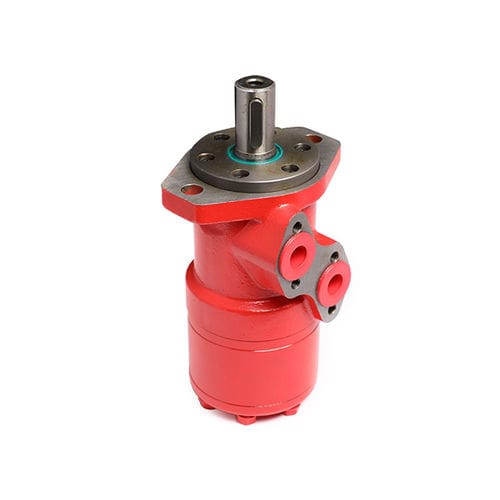

موتور هیدرولیک مداری
نام انگلیسی:
Orbital hydraulic motor GR series
برند:
Shanghai Guorui Hydraulic Technology Co., Ltd
مشخصات:
GR Series Orbit Motor
The GR series orbit motor is equipped with a spool valve and an integrated design with a distribution valve and output shaft. The universal shaft drives the distribution valve to transfer the mechanical energy from the gear to the output shaft. The valve has a hydrodynamic bearing, with a long service life within the maximum load. A roll-gearmotor set is also utilized.
Optional functions
Spool valve, roll-gerotor
Flange coupling
Motor with needle bearing
Side and bottom port
Shaft extension: straight, spline, tapered
Metric and BSPP port
Speed sensing
توضیحات:
Technology
gear, orbital
Pressure
17,500,000 Pa, 20,000,000 Pa(2,538 psi, 2,901 psi)
Rotational speed
970 rpm(6,094.69 rad.min-1)
Torque
610 Nm, 690 Nm(449.91 ft.lb, 508.92 ft.lb)
Displacement
397 cm³(13.42 US fl oz)
