نام محصول:
موتور هیدرولیک دنده

نام انگلیسی:

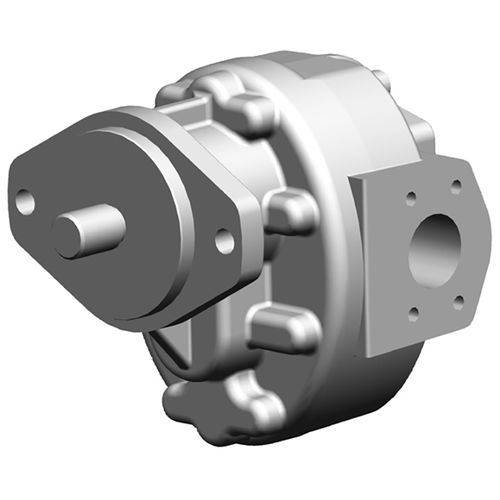

Gear hydraulic motor KM 5

برند:
KRACHT GmbH

مشخصات:
KM series high pressure gear motors are mainly used in oil-hydraulic plants. They are suitable both for hydraulic fluids as well as mineral oil bases (DIN 51524/25) and engine oils (DIN 51511).

The housing components are made from high-grade cast iron, the shaft and gears from hardened and ground case-hardening steel. The shafts are supported in multi-layer bearings that have excellent antifriction properties. The seals in the drive shaft ends are made using solely NBR or FKM shaft seals. An outboard bearing is placed on the shaft end to handle radial and axial forces.

توضیحات:
Technology
gear

Other characteristics
high-pressure

Pressure
Min.: 0 bar(0 psi)Max.: 100 bar(1,450 psi)

Rotational speed
Min.: 800 rpm(5,026.55 rad.min-1)Max.: 2,000 rpm(12,566.37 rad.min-1)

Displacement
Min.: 219 cm³(7.41 US fl oz)Max.: 300 cm³(10.14 US fl oz)
