نام محصول:
موتور هیدرولیک دنده
نام انگلیسی:
Gear hydraulic motor GHM1 Series
برند:
jbj Techniques Limited
مشخصات:

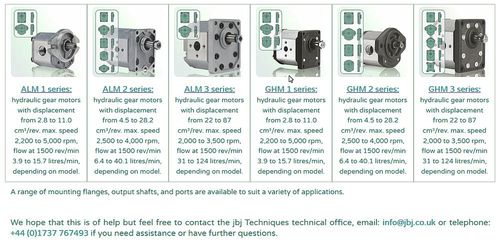

Group 1 hydraulic gear motors with displacement from 2.8 to 11.0 cm³/rev. max. speed 2,200 to 5,000 rpm, flow at 1500 rev/min 3.9 to 15.7 litres/min, depending on model.
A range of mounting flanges, output shafts, and ports are available to suit a variety of applications.
Convert hydraulic pressure and flow into torque and angular displacement, rotary mechanical power, applied to a load via the shaft. Hydraulic fluid is moved into the motor causing the matched gear set to rotate. One of the gears is connected to the motor output shaft so producing the rotary mechanical power.
Visit www.jbj.co.uk/gear-motors.html for:
» Frequently used mathematical formulas.
» A guide for selecting the right size Hydraulic Gear Motor.
» Example calculations with performance graphs.
Full technical specification catalogue available at ~
www.jbj.co.uk/e-publications/ALM-series-gear-motors-from-jbj-Techniques-Limited/4/index.html
Hydraulic gear motors can be supplied in single or bi-rotational formats and units are available with a comprehensive range of mounting flange and shaft options including specific designs to accommodate high radial loads.
A complete range of integrated relief valves and anti-cavitation valves to suit a wide range of applications are available as standard.
A variety of materials used within the construction process ensure suitability for a wide range of fluids and environments.
توضیحات:
Technology
gear
