نام محصول:

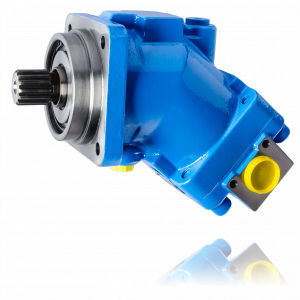

موتور هیدرولیک جابجایی ثابت
نام انگلیسی:
Fixed-displacement hydraulic motor M series
برند:
HYDRO LEDUC
مشخصات:
Hydraulic motors are of bent axis design with a 40° angle, they combine high performance and reduced size envelope.
M series piston motors are designed for fixed and mobile applications, and can be used in either closed or open loop systems.
The service pressure of these motors is up to 400 bar continuous and 450 bar peak, maximum rotation speeds of 3400 to 8000 rpm depending on the model.
M motors exist with keyed or splined shaft.
A and B port options are available.
Characteristics and advantages :
high efficiency,
speed sensor and flushing valve as options,
on request : anti-cavitation valve, pressure limiter.
Applications :
construction equipment (for example : transmission, vibro hammer),
fan drive,
forestry machines (mulcher, harvester head…),
agricultural machinery,
heavy winches,
mining equipment,
municipal equipement (mower, sweeper, salt spray spreader…),
defense.
توضیحات:
Technology
spherical piston
Other characteristics
fixed-displacement, open circuit, closed circuit
Pressure
400 bar, 450 bar(5,802 psi, 6,527 psi)
Rotational speed
Max.: 8,000 rpm(50,265.48 rad.min-1)Min.: 3,600 rpm(22,619.47 rad.min-1)
Torque
Max.: 1,006 Nm(741.99 ft.lb)Min.: 28 Nm(20.65 ft.lb)
Displacement
Max.: 180 cm³(6.09 US fl oz)Min.: 5 cm³(0.17 US fl oz)
