نام محصول:
موتور هوا
نام انگلیسی:

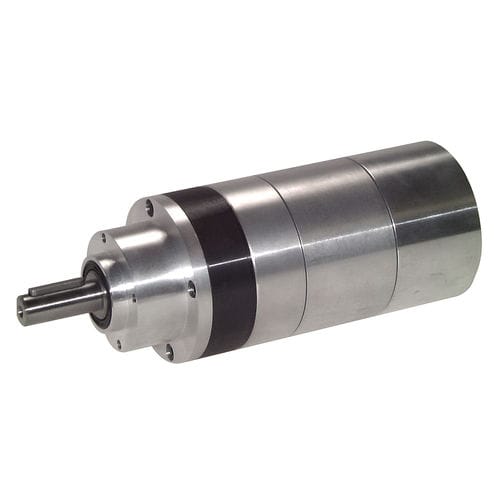

Vane air motor R series
برند:
Sommer-Technik
مشخصات:

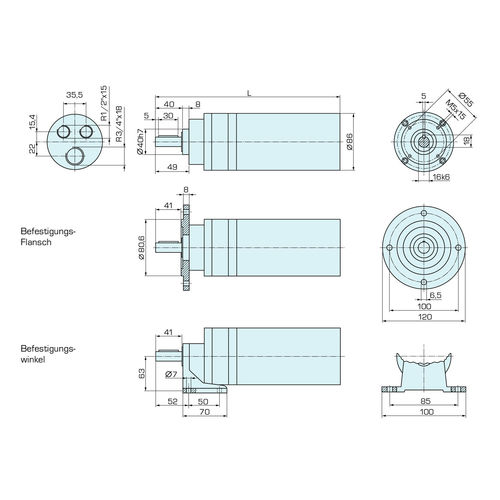

Air Vane Motors 800/ 1000 has an anodized aluminum with a shaft of Steel ETG100 and special synthetic material with high durability blades. Its compressed air temperature is +10 °C…+40 °C with a maximum environmental temperature of + 80 °C although there is a danger of the tool to ice up with a temperature beneath -5 °C. The pressure range of the Air Vane Motors is 0,5 to 7 bar. It is also incorporated with mounting flange and mounting bracket.
توضیحات:
Technology.
vane
Other characteristics
steel, aluminum
Torque
Max.: 60 Nm(44.25 ft.lb)Min.: 3.8 Nm(2.8 ft.lb)
Rotational speed
Max.: 4,000 rpm(25,132.74 rad.min-1)Min.: 30 rpm(188.5 rad.min-1)
Power
800 W, 1,000 W
