نام محصول:
موتور هوا
نام انگلیسی:

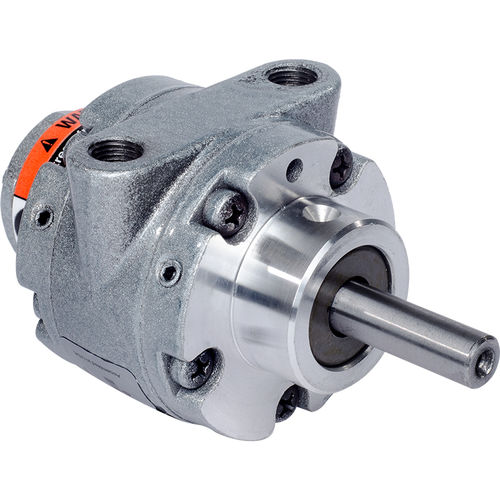

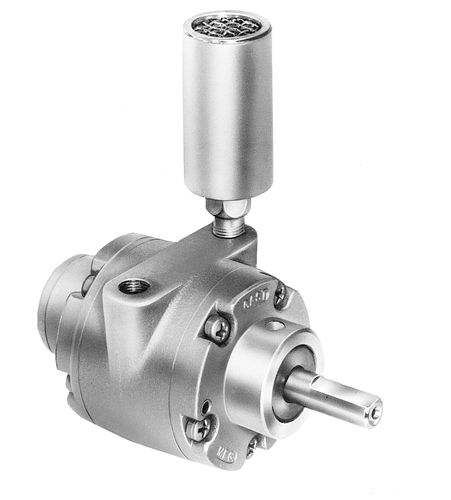

Vane air motor 1AM series
برند:
GAST
مشخصات:
Power 0.45 hp ( 0.33 kW )
Max Speed 10000 rpm
Torque @ Max Speed 2.75 lb-in ( 0.31 Nm )
Max Air Consumption 20.5 cfm ( 35.1 m3/h )
Speed @ Max Torque 650 rpm
Max Torque 5.6 lb-in ( 0.7 Nm )
Product Details
The compact and portable 1AM/1UP series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.
Mounting Options
Available in a hub option, Gast air motors can operate in any position offering you a great degree of flexibility when mounting the air motor or integrating into an OEM system.
Product Marking
This product is Marked: II 2 G D c T4 (+1 ℃
توضیحات:
Technology.
vane
Other characteristics
ATEX, compact, lubricated
Torque
Min.: 0 Nm(0 ft.lb)Max.: 0.7 Nm(0.52 ft.lb)
Rotational speed
Min.: 0 rpm(0 rad.min-1)Max.: 10,000 rpm(62,831.85 rad.min-1)
Power
0.33 kW(0.45 hp)
