نام محصول:
موتور هوا روتاری
نام انگلیسی:
Rotary vane air motor 20M ATEX
برند:
FIAM
مشخصات:

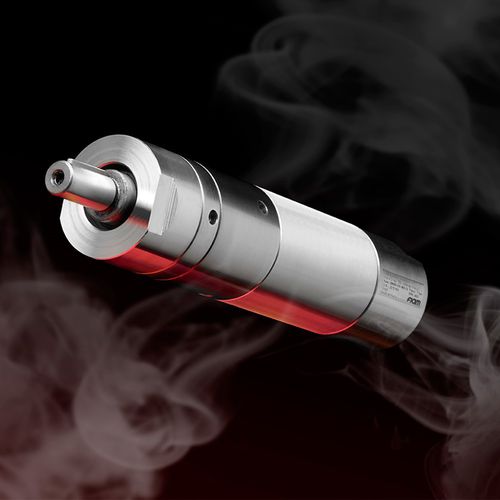

ATEX air motors: certified safety. 100% Made in Italy“: designed and produced by Fiam in Vicenza.
20M- 200Watt- air motors are ATEX certified in accordance with the European Union directives on equipment for potentially explosive atmospheres.
Made from stainless steel, they are corrosion-free and can be used safely in working environments containing flammable or explosive substances or where there are high temperatures. Each motor is tested separately to ensure that it meets the following classifications:
– Ex II 2G Ex h IIC T5 Gb
– Ex II 2D Ex h IIIC T5 Db.
All ATEX air motors are made of stainless steel and the sealants and gaskets used ensure that they are also IP67 certified: an important condition that means they can be used where they need to be hermetic to the ingress of dust and fumes.
Models are available with smooth or threaded output shaft and collet shaft, as well as with low rpm. All equipped with hole for motor earthing cable.
On request: output shafts of different diameters.
ATEX certification is also available on request for the 15M motor range: contact the Fiam Technical Service Department.
توضیحات:
Technology.
rotary vane
Other characteristics
ATEX, stainless steel, IP67
Torque
Max.: 5.7 Nm(4.2 ft.lb)Min.: 0.15 Nm(0.11 ft.lb)
Rotational speed
Max.: 11,000 rpm(69,115.04 rad.min-1)Min.: 300 rpm(1,884.96 rad.min-1)
Power
Max.: 200 WMin.: 160 W
