نام محصول:
موتور هوا دنده سیاره ای
نام انگلیسی:

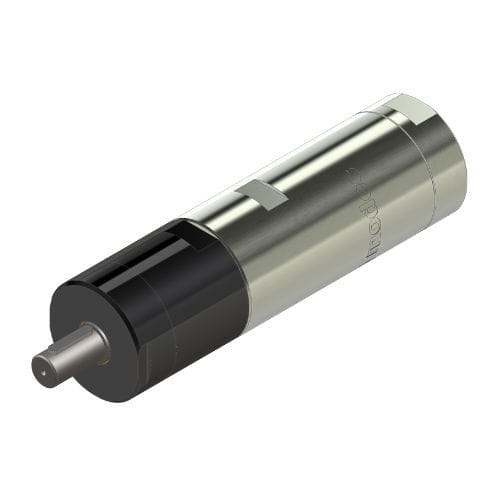

Planetary gear air motor MTE 05 series
برند:
MODEC
مشخصات:

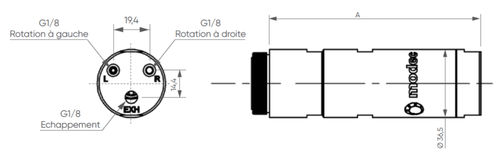

“05” series air motors are the lightest and most compact. With a 300W power in a 113 x 36,5 mm cylinder weighting half a kilogram only, these motors fit easily in a machine.
Like any of our motors, power and torque are easily controlable by simply adjusting air supply pressure, which allows to use them “at stall” without any additional precaution.
This makes them an ideal tool for cap screwing on bottling lines for example.
توضیحات:
Technology.
rotary vane, planetary gear
Other characteristics

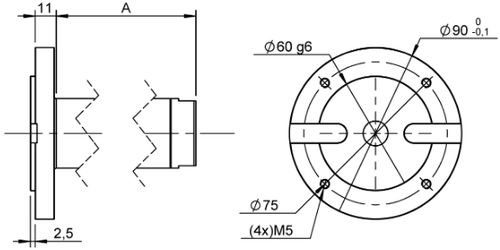

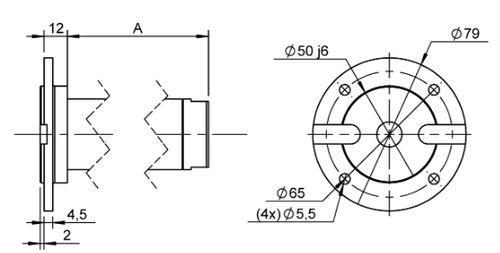

ATEX, compact, flange
Torque
Max.: 0.56 Nm(0.41 ft.lb)Min.: 0.17 Nm(0.13 ft.lb)
Rotational speed
Max.: 22,800 rpm(143,256.63 rad.min-1)Min.: 8,400 rpm(52,778.76 rad.min-1)
Power
180 W, 230 W, 300 W(0.24 hp, 0.31 hp, 0.41 hp)
