نام محصول:
مهار کابل مسطح

نام انگلیسی:
Flat cable harness gesis® NRG Series

برند:
WIELAND ELECTRIC

مشخصات:

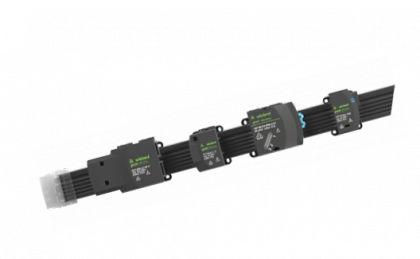

The gesis® NRG flat cable system combines all the advantages of a modern electrical installation

THE FLEXIBLE BUS-BAR

gesis® NRG enables outputs to be installed and removed easily without cutting and stripping the cable, and it allows for flexible, simple, and space-saving routing. gesis® NRG thereby simplifies installation and planning, and enables not only pure energy distribution but also the combined distribution of energy and data (KNX, SMI, DALI, etc.) inside buildings. In gesis® NRG, Wieland Electric offers a TOP solution for structured and fast electrical installation.

QUICK, EASY AND FLEXIBLE

Robust and practical

Small number of different components

Adapters and feeds compact and robust

Easy and quick installation

Contact to the flat cable by means of IDC (no baring and stripping necessary)

Meets all the requirements of fixed installations

Resource-efficient

Quick planning and installation

Reduction in cable material (copper and plastics)

Short connection cables for end consumers

Energy savings due to three-phase cabling

Easy to combine, consistent in the system

The 10 mm² system output adapters

can directly feed customized and property-specific system distributors which are used for protection and sub-distribution

The 2.5/4 mm² system output adapters

are all designed to be directly pluggable. After leaving the flat cable, it is possible to transition directly to GST18® in order to run the electrical installation to all the consumers

توضیحات:
Configuration
flat
