نام محصول:
مهار کابل داده
نام انگلیسی:

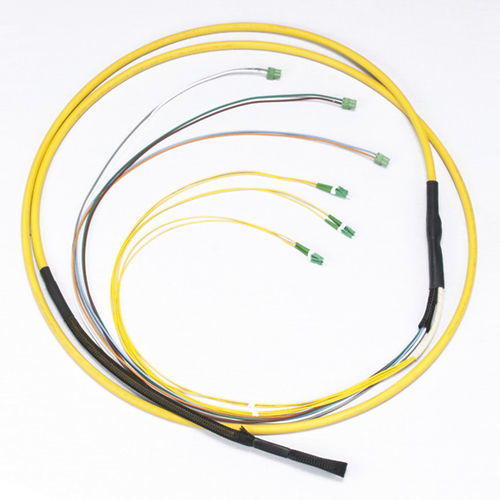

Data cable harness HR0018G6C06U820100F-PK
برند:
CORNING
مشخصات:
Composite ONE™ Pigtail, LC APC to pigtail with 36-in legs 6 F, 6 Cu Conductor, 14AWG, pulling grip one end, SMF-28® Ultra fiber (OS2), 100 ft
Contains both power carrying copper strands and data transmitting fiber in one jacket
Reduces labor and time to install
Low-profile, heat-shrink furcations with integrated pulling loop
Design enables easy cable pulling in tight spaces
Durable pulling gripProtects the connectors while pulling the cable
Angled polish duplex connectorsLow back reflectance protects active electronic equipment
RoHS – Free of hazardous substances according to RoHS 2011/65/EU
Fiber Count – 6
Conductor count – 6
Conductor – 14 AWG
Outer Jacket Material – Flame-retardant
Polarity – TIA-568 Type-A
Tensile Strength – 660 N (148.37 lbf)
Min. Bend Radius Installation – 168 mm (6.61 in)
Min. Bend Radius Operation – 112 mm (4.41 in)
Reflectance, Typical – ≤ -65 dB
Polish – APC
Insertion Loss, Typical – 0.15 dB
Insertion Loss, Max. – 0.25 dB
Keyed (security) – No
Boot Color – Blue
Connector Type – LC APC
Ferrule Material – Ceramic
Housing Color – Blue
Housing Material – Composite
Boot Type – Individual
Leg Diameter – 2 mm (0.08 in)
Plug Type – Heat-shrink sleeve
Staggered furcation – No
Pulling grip – Yes
Tensile Strength – 660 N (148.37 lbf)
Outer Diameter – 11.2 mm (0.44 in)
Contains both power carrying copper strands and data transmitting fiber in one jacket
Reduces labor and time to install
Low-profile, heat-shrink furcations with integrated pulling loop
Design enables easy cable pulling in tight spaces
Durable pulling gripProtects the connectors while pulling the cable
توضیحات:
Cable type
data, multi-mode fiber optic
Configuration
duplex
Other characteristics
low-profile, power
