نام محصول:
منبع تغذیه DC
نام انگلیسی:
DC power supply P130R51D
برند:
Diametral a.s.
مشخصات:
The concept of laboratory DC voltage sources, which has been proven over the years, is designed to power DC electrical devices in industry and education. The robust metal construction, linear regulation and constancy of parameters determine them for use even in the most demanding tasks.

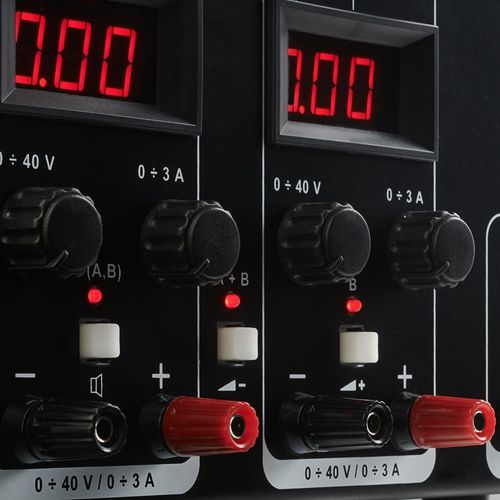

Characteristics of laboratory DC voltage sources
Control of individual outputs with separate buttons.
LED signaling of switching on outputs and functional states.
Intermittent warning sound signaling of current limitation.
Optical signaling of current limitation with a decimal point on the ammeter display.
Large, readable, red LED displays.
“Coarse” and “fine” voltage adjustment using a potentiometer.
Automatic cooling fan.
A transformer designed for continuous power supply to the load.
Technical parameters
Ripple typical – < 2mV
Ripple maximum – 10 mV
Voltage stability for mains change +6/-10% – approx. 0,05%
Current stability for mains change +6/-10% – approx. 0,05%
Type of measuring devices – 888 LED
Number of measuring devices – 2
Measurement accuracy class – 2
Connection of adjustable sources into a symmetrical source – NO
Electronic radiator thermostat with fan – YES
Output state memory before shutdown – YES
Colour – black
Dimensions in mm (h, w, d – approx.) – 172 x 164 x 282
Weight – approx. 6,8 kg
Warranty – 24 months
Soft-start
The outputs of the sources are activated after the laboratory source is switched on and after the test has been performed. The connected devices are thus protected against possible voltage peaks arising during start-up.
توضیحات:
Type
DC
Output
adjustable
Technology
switching, linear
Mounting
tabletop
Applications
laboratory
Other characteristics
robust
Input voltage
230 V
Output voltage
Min.: 0 VMax.: 30 V
Current
3 A, 4 A
Power
160 W
