نام محصول:
منبع تغذیه DC/DC
نام انگلیسی:
DC/DC power supply MUC series
برند:
shaanxi Wisman High Voltage Power Supply
مشخصات:
APPLICATIONS: Capacitor Charging,Pulsed power,Pulse generator,ESD(Electrostatic Discharge Testing),Mass spectrometry,Laser,Cable Testing,Dielectric Breakdown Testing,High voltage testing,Electron Beam/Ion Beam

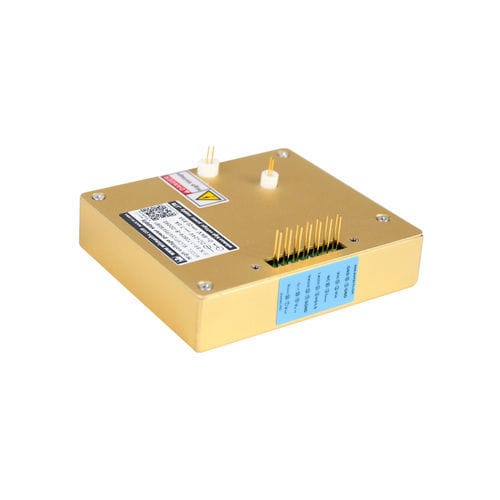

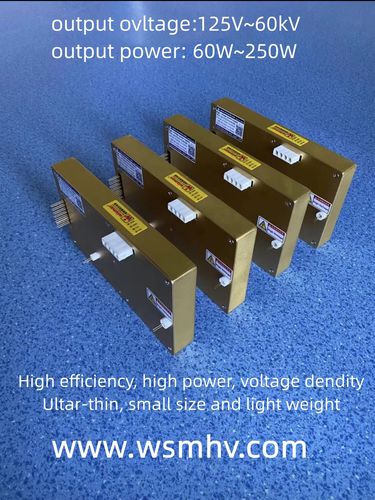

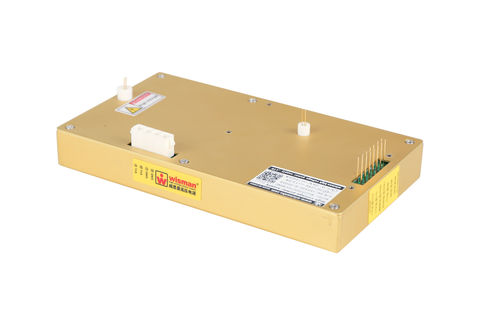

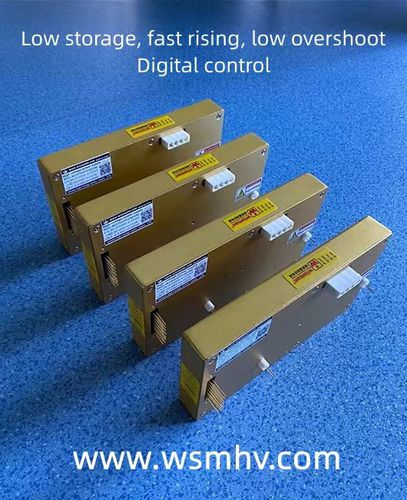

Wisman’s MUC high-voltage power supply module has a maximum output power of 60W, 125W, 250W, and a voltage range of 250V-60KV. MUC series modules can be unipolar output or bipolar output. When the output is unipolar, it can be used in occasions with higher current requirements; when the output is bipolar, it is usually used for push-pull circuit power supply applications. The MUC series of high power density devices are particularly suitable for high-energy pulses, amplifiers and charging devices with large capacitance, fast repetition rate and high current loads. The MUC series of high-power and high-voltage power modules are the current market-leading modules in terms of product appearance and power density. This SMT-based high-voltage power module has superior performance and high reliability. MUC is a system integrator OEM Ideal choice, easier system integration.
SPECIFICATIONS
Input current: 60W: 3.25A, 125W: 6.5A, 250W: 13A
High stablility:<0.01%/8hr,0.02%/24hr Half an hour after booting
Ripple: 0.1%
Temperature coefficient:25ppm/℃
Line regulation: 0.01%
Load regulation:0.01%
Working temperature: -10~+65℃(option:-10~+65℃)
Storage temperature:-10~+70℃(Option:-55~+105℃)
Humidity: 20-95%RH（non condensing)
Below can be cutomized:
Thermal shock: -40 to +65 °C, Mil-Std-810, Method 503-4, Process II
توضیحات:
Type
DC/DC
Output
single-output, current output, stabilized, adjustable
Technology
technology
Network
single-phase
Protection
with short-circuit protection, with overcurrent protection, with overload protection, with overheating protection
Connection
with safety terminals
Certifications
CE, ISO
Features
compact, modular
Applications
for industrial applications, laboratory, for telecommunications equipment, for medical applications, for automation, remote control, for medical applications, for anti-static equipment, for infrared detector, for laser applications, test, for electron guns, for plasma cutting, photo-multiplier
Other characteristics
programmable, high-voltage, high-power, high-performance, high-frequency, medium-frequency, bipolar
Input voltage
24 V
Output voltage
Max.: 60 kVMin.: 0.13 kV
Current
Max.: 2,000 mAMin.: 1 mA
Power
60 W, 125 W, 250 W
