نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:
AC/DC power supply UltraHeat S2
برند:
Ultraflex Power
مشخصات:

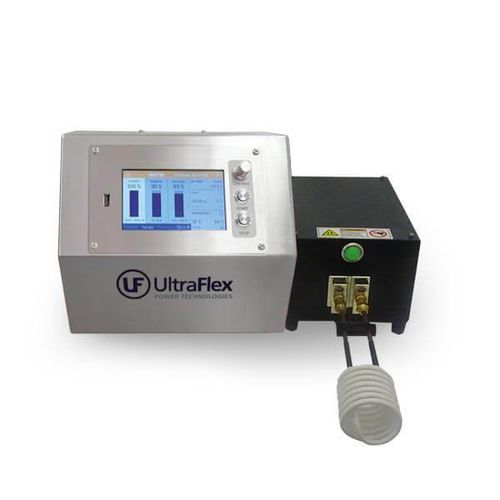

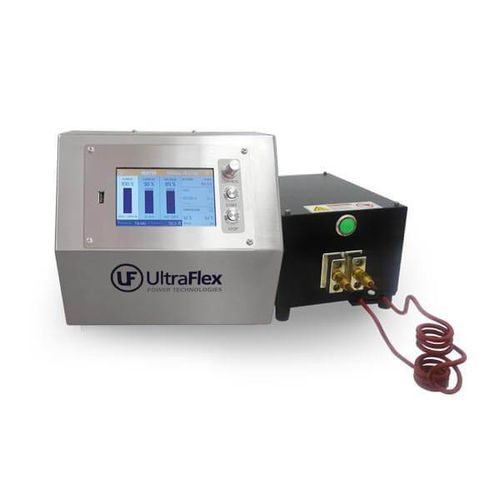

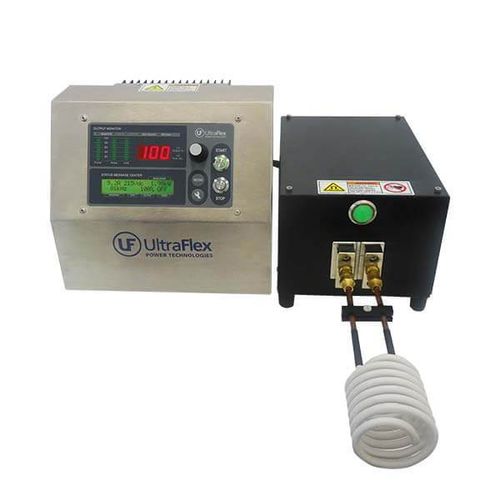

UltraHeat S Series are compact and efficient 2kW induction heaters that operate with a water-cooled or air-cooled remote heat station. The state-of-the-art induction heaters utilize the latest switching power supply technology and adaptive digital phase control to operate in a wide frequency range.
Durable design
Easy to maintain and service
Wide range load impedance matching
Configurable tank capacitance
STANDARD FEATURES
Output regulation – Voltage, Power, Current
Limits setting – Current, DC Volts, Output Volts, Power, Frequency
Compact air-cooled power supply design with automatic fan control
Operator controls – Selectable: Automatic, Remote or Local
Multiple user programs and programmable parameters
Capable of delivering full power in the specified frequency range (see Specifications tables)
Variable ratio output isolation transformer for load matching of a wide range of loads and coils
Power control from 1% to 100% in 1% increments
ADVANCED OPTIONS
Advanced 5” Color LCD touch panel
Digital I/O Interface board – Remote Start/Stop
Temperature monitoring & control with K type thermocouple
Temperature regulator for standard IR sensor input
Serial Interface: RS-485
Data logging and remote diagnostics
Power supply:
RS-485 interface for remote computer monitoring, control, and diagnostics
External Controls – Start/Stop operation, External Fault

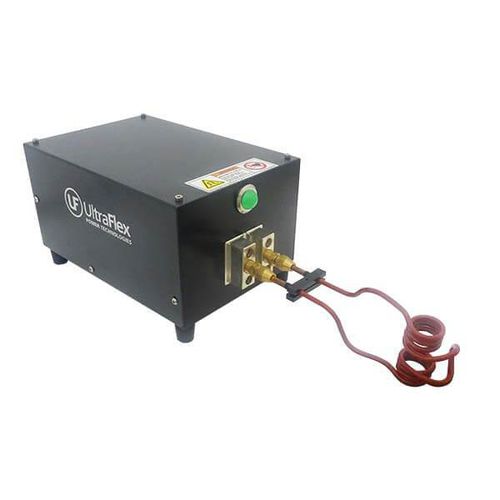

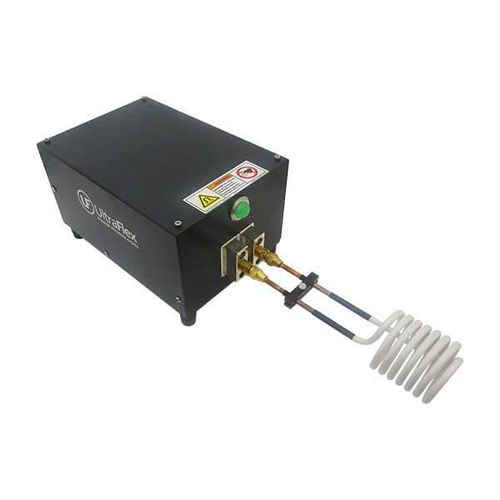

Heat Station:
External Controls – Start/Stop/Foot Switch
توضیحات:
Type
AC/DC
Technology
switching
Network
single-phase
Mounting
tabletop
Features
compact
Applications
for induction heating
Other characteristics
programmable
Input voltage
Max.: 10 VMin.: 0 V
Output voltage
110 V, 230 V
Power
1,000 W, 2,000 W
Output frequency
Max.: 400 kHzMin.: 30 kHz
