نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

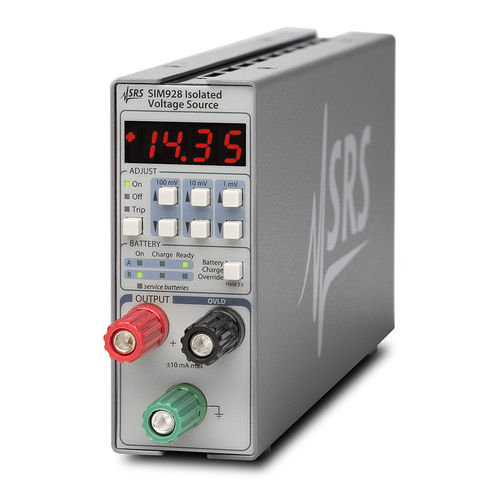

AC/DC power supply SIM928
برند:
Stanford Research Systems
مشخصات:
±20 V isolated voltage source
Ultra-low noise output
Two switchable, recharging batteries
for continuous operation
Battery lifetime: 1000 charge cycles
Output floats to ±40 V
Short-circuit protected
The SIM928 Isolated Voltage Source is ideal for applications where ultra-clean DC voltage is required. Voltage can be set between ±20 VDC with millivolt resolution, and the source can drive up to ±10 mA. The output circuit is optically isolated from all earth-referenced charging circuitry, providing maximum flexibility and noise immunity. The system can float to ±40 V, and the output is short-circuit protected.
At the heart of the SIM928 are two independent nickel-metal-hydride rechargeable batteries, each providing up to 12 hours of operation under full load conditions. When a battery is nearly depleted, the SIM928 automatically switches in a second battery. The switchover between batteries is virtually glitch-free, giving you uninterrupted power around the clock. The depleted battery is automatically charged to capacity in about 5 hours. The batteries are guaranteed for 1000 charging cycles, and SRS offers replacement battery sets.
In applications that occur over long time intervals, starting with a fully charged battery may be desirable. A battery charge override feature allows you to manually switch in the fully charged battery (assuming it is in “ready” state) at any time.
Banana binding posts are provided for the + terminal, – terminal and chassis ground.
توضیحات:
Type
AC/DC
Mounting
tabletop
Other characteristics
mobile
Input voltage
15 V, 24 V
Output voltage
Min.: -20 VMax.: 20 V
Current
0.01 A
