نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

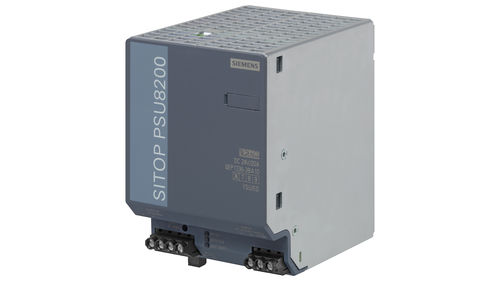

AC/DC power supply SITOP PSU8200
برند:
Siemens Power Supplies
مشخصات:
The one, two and three-phase SITOP modular power supply units are the technology power supplies for demanding solutions. They offer special functions that facilitate universal use and flexible adaptation to the application.
Reliable power for complex plants and machines …
… with maximum functionality
The wide-range input of SITOP PSU8200 allows connection to almost any
electrical power system worldwide and ensures a high degree of safety even if there are large voltage fluctuations.
The technology power supplies offer an excellent overload behavior: The Power Boost supplies up to three times the rated current for a short time, and with the extra power of 150%, consumers with high power consumption can be connected without problems. Moreover, you can choose between constant current or automatic restart in case of overload. The very high efficiency keeps the energy consumption and heat generation in the control cabinet to a minimum, and the compact metal enclosure requires less space.
To further increase the availability, the SITOP PSU8200 power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules.
Your benefits at a glance
Extremely slim design – no lateral installation clearances required
Power Boost with 3 times the rated current (for 25 ms) for tripping protective devices
Extra power with 1.5 times the rated current (5 s/min) for brief, operational overload
Optional short-circuit behavior between constant current and restart
Optional symmetrical load distribution for parallel operation
Extremely high efficiency up to 95%
Wide temperature range from -25 to +70 °C
Comprehensive certifications, such as cULus, ATEX or GL
توضیحات:
Type
AC/DC
Output
stabilized
Network
single-phase
Protection
with short-circuit protection, with overload protection
Mounting
DIN rail
Features
compact, modular
Other characteristics
ATEX
Input voltage
120 V, 230 V
Output voltage
24 V
Current
Max.: 40 AMin.: 0 A
Power
120 W, 240 W, 480 W, 960 W
Output frequency
50 Hz, 60 Hz
