نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

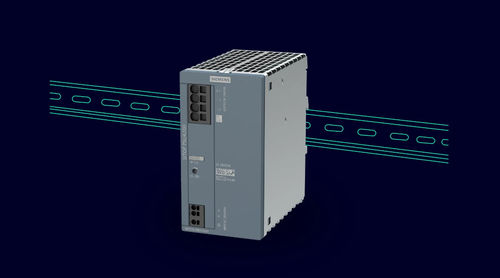

AC/DC power supply SITOP PSU4200
برند:
Siemens Power Supplies
مشخصات:
Fresh Power for your basic applications
Quickly assembled, easy to operate, capable, and reliable – that’s the SITOP PSU4200, the new generation of basic power supplies. Available in six 1- or 3-phase 24 V units from 3 to 20 A, this solution meets all basic needs and is not only reasonably priced but also reliable and efficient, thanks to its compact dimensions and no lateral clearances, even in the smallest control panel.
The 1-phase SITOP PSU4200 power supplies are available in the following versions:
– 3 A (WxHxD: 50x135x125 mm)
– 5 A (WxHxD: 50x135x125 mm)
– 10 A (WxHxD: 70x135x125 mm)
– 20 A (WxHxD: 70x135x125 mm)
They can be mounted directly alongside each other on the DIN rail with no lateral clearances. Together with their slim design, this saves space in the control panel.
These power supplies can also be easily expanded using the SITOP buffer, redundancy, and selectivity modules – for maximum reliability and availability.
Minimal power loss and long service life thanks to high efficiency – up to 93%
Minimum reactive current component thanks to active PFC (Power Factor Correction, for the 20 A device)
Easy and clear diagnostics thanks to LED power monitor
Adjustable output voltage from 24 to 28 V DC to offset voltage drops on long lines
Highly reliable thanks to full load current up to +60°C and a temperature range from -25°C to +70°C; derating only from +60°C (2.5%/K)
Easy wiring thanks to push-in terminals, front-mounted, easily accessible clamps, and clear terminal labeling
توضیحات:
Type
AC/DC
Output
adjustable
Technology
switching
Network
single-phase, three-phase
Mounting
DIN rail
Features
compact
Applications
for industrial applications
Input voltage
Max.: 500 VMin.: 100 V
Output voltage
24 V
Current
Max.: 20 AMin.: 3 A
Power
480 W
Output frequency
Max.: 60 HzMin.: 50 Hz
