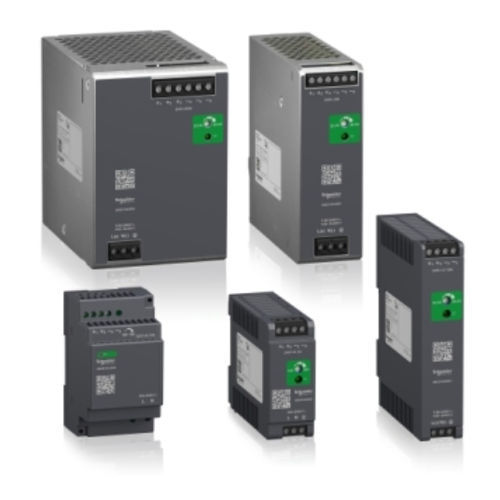

منبع تغذیه AC/DC – Schneider Electric – AC/DC power supply AB series

نام محصول:
منبع تغذیه AC/DC

نام انگلیسی:
AC/DC power supply AB series

برند:
Schneider Electric

مشخصات:
Modicon switch mode power supply offer is designed to provide the DC voltage necessary for the automation system equipment control circuits. Modicon industrial power supplies are regulated switch mode power supplies, available in 3 types: ABLM Modular, ABLS Optimised, ABLU3 and ABL8RP/WP Universal.

Benefits

Sustainable

Long life time and MTBF, conformal coating, operating temperature up to +70°C

Cost saving

Compact casing, NEC Class 2

Safe

Over and under voltage protection, Hazardous location certification

Easy to use

Wiring capabilities, multiple terminals, several mounting positions, wide input voltage range

Features

• Modular housing with 18, 36, or 53mm width

• NEC Class2 / LPS

• 2 housings formats for a better adaptation to the enclosure; compact and book

• Conformal coating (optimized book)

• NEC Class2 / LPS

• Up to 6 output terminals make wiring easier

• One of the most compact power supplies on the market

• Power boost (150% of the nominal power during 5 sec)

• Conformal coating

• 2 different output protection modes (Auto/Manu)

• Diagnosis contact

• Up to +70°C operating temperature

• Compatibility with ABL8 functional modules

• Power boost (150% of the nominal power during 4 sec)

• 2 different output protection modes (Auto/Manu)

• Diagnosis contact

• Compatibility with ABL8 functional modules

• Buffer module or Battery check modules and their batteries to ensure continuity of service in the event of a power outage

• Redundancy module to meet the requirements for continuity of service even if the power supply is cut off

• Downstream electronic Protection modules to make the protection in the application

توضیحات:
Type
AC/DC

Output
regulated, dual-output

Technology
switching

Network
single-phase, two-phase

Mounting
DIN rail

Features
modular

Applications
for industrial applications

Input voltage
Max.: 500 VMin.: 100 V

Output voltage
Max.: 24 VMin.: 5 V

Power
Max.: 960 WMin.: 10 W
