نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:
AC/DC power supply PPS
برند:
QAWRUMS Ltd.
مشخصات:

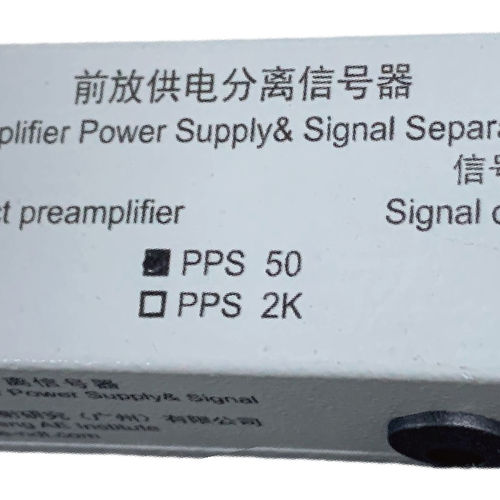

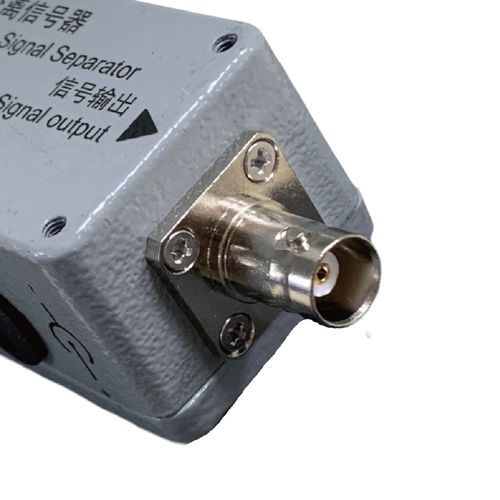

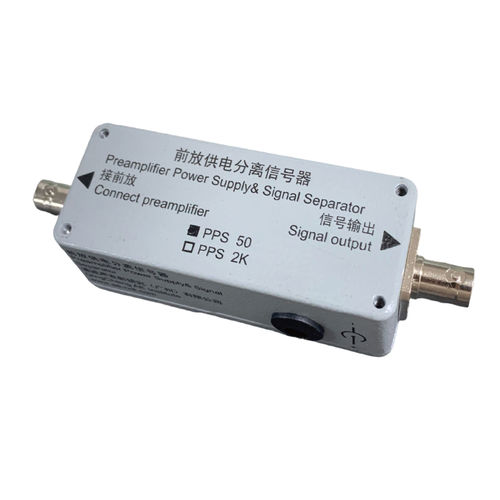

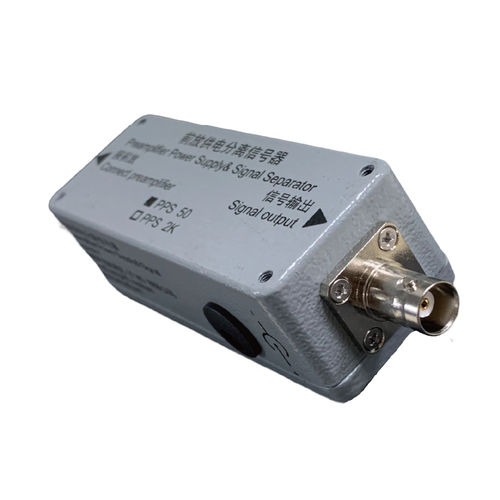

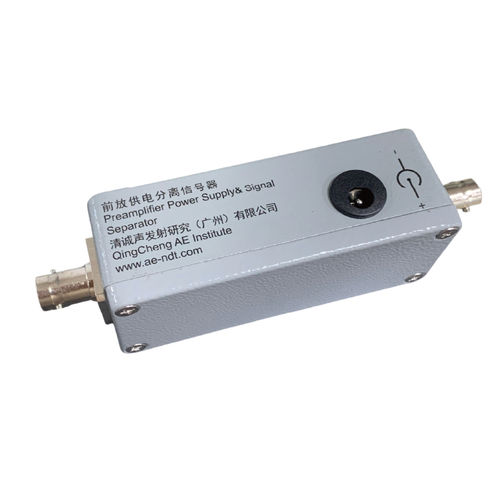

PPS is the preamplifier power supply and signal separator. When you choose the data acquisition board that can not supply power to the preamplifier and also there is no power adaptor can be connected to the preamplifier, it is necessary to connect PPS and power adapter to supply power to preamplifier, to ensure normal usage of the preamplifier and to separate the signals.
For example, most non AE acquisition systems don’t supply voltage power to the analog inputs, such as oscilloscopes, or NI DAQ. So if you are using these DAQ or instruments and also your sensors are with built-in preamp or PAV, it is necessary to add the PPS before your DAQ. The connections are demonstrated below in the diagram.
There are two types of PPS available, PPS50 and PPS2000 respectively. The difference is the output impedance of the PPS. Choose the PPS type according to the input impedance of the DAQ or oscilloscopes. If input impedance of the end instrument is low, choose PPS50. If the input impedance is very high, choose PPS2000.
توضیحات:
Type
AC/DC, DC
Output
single-output
Technology
linear
Network
single-phase
Mounting
plug-in
Features
compact, modular, external
Applications
for industrial applications, laboratory, electronic equipment, for signal preamplifier
Other characteristics
wide input range, adapter, analog, benchtop, bi-directional
Input voltage
Min.: 100 VMax.: 240 V
Output voltage
28 V
