نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

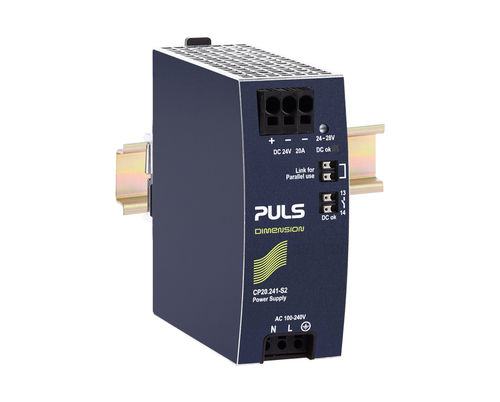

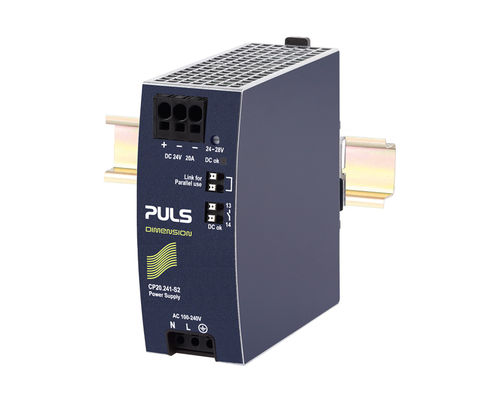

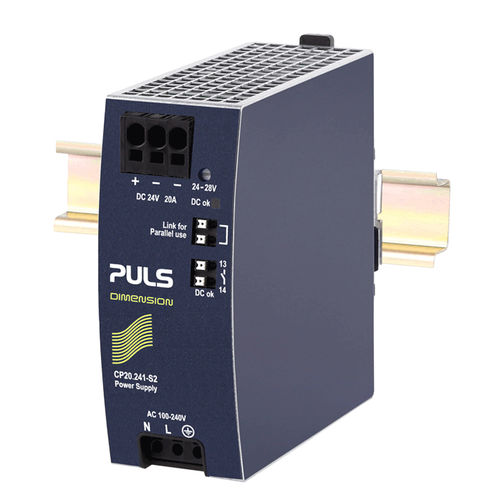

AC/DC power supply CP20.241-S2
برند:
PULS GmbH
مشخصات:
Harmonic correction – active
Power factor – 0.98
Input inrush current limitation – active
Input inrush current – 10 A / 4.5 A
External input fuse recommendation – B-10 A / C-10 A
Output data
Power reserves – 20 % Power Boost
Derating – 12 W/°C for >60 °C
Ripple and noise voltage max. – 50 mVpp
Overview
Dimensions (WxHxD) – 48 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) – 830 g
Operating temp. range – -25 °C to 70 °C
Connection method – Push-in clamps
Efficiency, typ. – 95.6 %
Power losses, typ. – 22.1 W
MTBF SN 29500 @ 40 °C (h) – 590000 h
DC-OK signal – yes
Width only 48 mm
Efficiency up to 95.6 %
Excellent Partial Load Efficiency
20 % Output Power Reserves
Easy Fuse Breaking – 3 times nominal current for 12ms
Safe HiccupPLUS Overload Mode
Minimal Inrush Current Surge
Full Power Between -25 °C and +60 °C
DC-OK Relay Contact
Current Sharing Feature for Parallel User
Push-in Terminals
توضیحات:
Type
AC/DC, DC/DC
Output
adjustable
Network
single-phase
Protection
with overload protection
Mounting
DIN rail
Other characteristics
with power factor correction (PFC), wide input range
Input voltage
Min.: 100 VMax.: 240 V
Output voltage
Min.: 24 VMax.: 28 V
Current
17.1 A, 20 A
Power
480 W
