نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

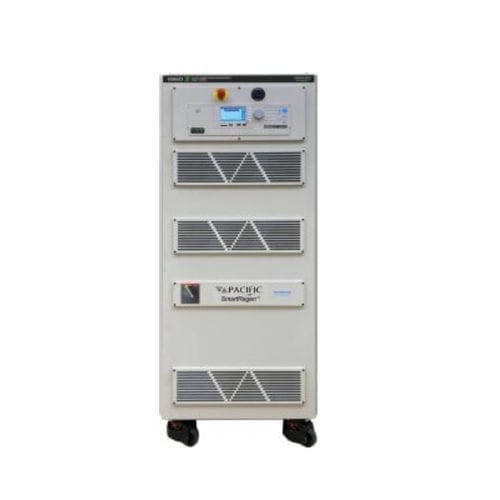

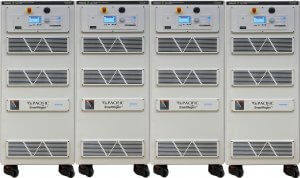

AC/DC power supply AZX series
برند:
Pacific Power Source
مشخصات:
The AZX Series is a family of high power, single, split and three phase, AC, DC and AC+DC output capable Power Sources with full energy recovery to the AC mains when sinking power from the equipment under test. Available models range from 30 kVA to 440 kVA. Using a modern color touch screen based user interface for ease of use, the AZX Series is cost effective and fully programmable for both basic frequency conversion and advanced AC power line or DC power disturbance test applications requiring up to 1000 Hz fundamental frequency.
The AZX Series consists of a range of High Power Switching AC, DC and AC+DC capable Power Sources with regenerative capability to support both sourcing and sinking of current and power. Energy recovery to the grid enables testing of products using only a fraction of the required grid power when compared to using non-regenerative power sources, saving cost. The AZX also supports testing of grid-tied products like wind and solar inverters, energy storage systems (ESS) and electric Vehicle to Grid (V2G) and Vehicle to Home discharge systems.
Covering a power range from 30 kVA to 440 kVA and higher if needed. All AZX models offer single, split and three phase output configurations as well as special dual or triple independent outputs as needed. The AZX is a state-of-the-art design using Silicon Carbide (SiC) power devices for enhanced performance.
Great emphasis has been placed on energy efficiency, ease of installation, and maximum power. Control and operational features provide a high degree of application versatility and ease of use for the test engineer.
توضیحات:
Type
AC/DC
Technology
switching
Network
single-phase, three-phase
Other characteristics
programmable, high-power
Input voltage
Max.: 480 VMin.: 380 V
Output voltage
225 V, 335 V, 440 V, 650 V
Power
Max.: 220,000 WMin.: 30,000 W
Output frequency
Max.: 1,000 HzMin.: 1 Hz
