نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:
AC/DC power supply N4A03
برند:
Newtons4th Ltd.
مشخصات:

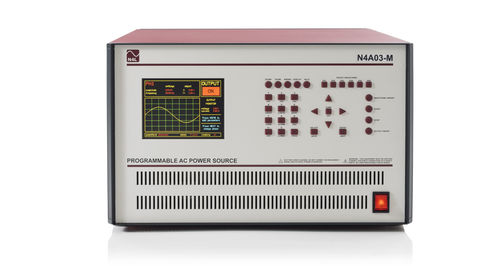

N4A source_User Manual_1. 09 The N4A range of Programmable AC Power Sources provide breakthrough low distortion performance previously unseen from a “Switched Topology” Source, the implementation of a proprietary “6 legged output stage” effectively creates a very high switching frequency for waveform construction – thus providing lower distortion. The N4A offers the unique ability to generate both high frequency power waveforms up to 1kHz as well as low frequency power waveforms down to 0.01Hz. This feature enables the engineer to simulate low frequency power devices such as wind turbines with very low fundamental frequencies. Up until now, switching topologies have suffered from higher distortion levels than that of the more established Linear approach. The introduction of the N4A power sources signifies a new chapter in low distortion AC Power Source technology.
The N4A AC power source range offers compliance to a range of international EMC standards including IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, IEC61000-3-12, IEC61000-4-11 and IEC61000-4-13. For further information regarding these standards, please see our EMC Test Systems product page.
توضیحات:
Type
AC/DC, AC/AC
Output
regulated, dual-output, variable-output
Technology
switching
Network
single-phase
Other characteristics
programmable
Input voltage
230 V
Output voltage
Min.: 0 VMax.: 425 V
