نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

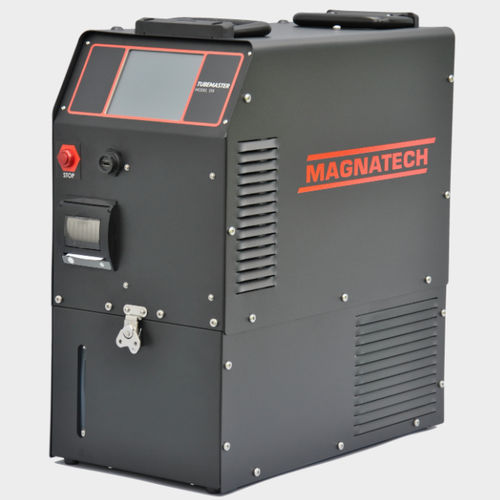

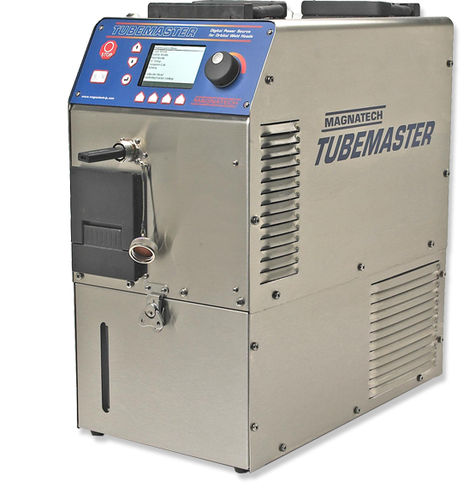

AC/DC power supply TUBEMASTER 514
برند:
Magnatech LLC
مشخصات:
PROGRAMMABLE POWER SOURCE FOR ORBITAL WELD HEADS
The model 514 brings the benefits of true digital technology to the orbital welding customer: unparalleled accuracy, repeatability, and reliability. Digital technology forever eliminates the need for periodic weld head calibration – rotation speed remains accurate regardless of head wear, and heads can be interchanged without time-consuming calibration. Weld parameters are actively monitored for QA/QC reporting. Now equipped
with an intuitive, color touch screen interface, both programming and every day usage is faster and simpler. Unique autoprogramming Rugged design Operates fusion and wire feed heads.
FEATURES
• 200 amp output @ 100% duty cycle
• Up to 100 levels per program
• Stores 100 weld programs internally
• Wire feed capability for wire feed heads

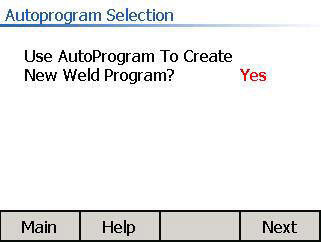

• AutoProgram automatically generates procedures
• Programmable “override limits” provide supervisory control
• Weld parameter monitoring/reporting for QA/QC purpose

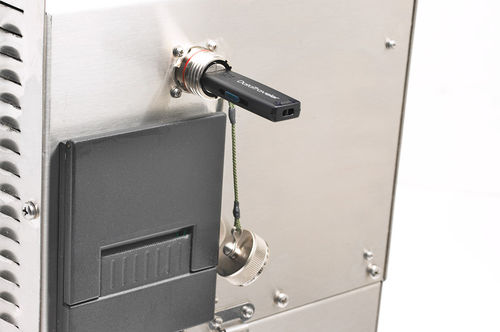

• Transfer programs and data to PCs using USB flash drive
• Offline programming with USB program transfer
• AutoTack automatically generates tack weld programs
• Large, color LCD touch screen
• Head-mounted membrane switches eliminate remote pendant
• Help files provide immediate information/assistance
• Password protection of key functions

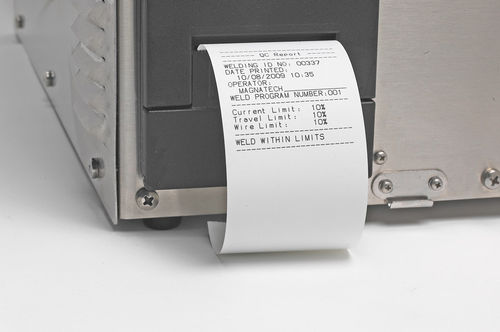

• Built-in printer allows program/QC report printout
• Detachable coolant recirculator with integral flow switch protection
• Operator immediately alerted to entry errors, with prompts
توضیحات:
Type
AC/DC
Mounting
built-in
Features
floor
Other characteristics
programmable, digital
Input voltage
80 V
Current
Max.: 200 AMin.: 0 A
