نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

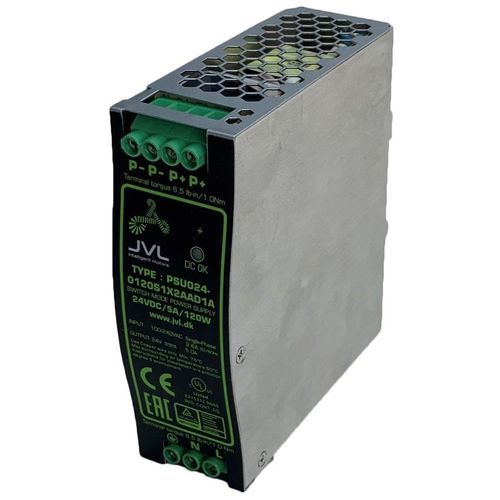

AC/DC power supply PSU024-0120S1X2AAD1A
برند:
JVL A/S
مشخصات:
High Quality Power Supplies
A 120W switchmode power supply that are particularly well suited for supplying the range of JVL integrated servo and steppermotor or other driver/controller with 24 VDC supply voltage. Ultra compact with dimension 40×125.2×113.5mm and only 0.6kg makes it fit in every cabinet. The ideal power supply for control voltage or single supply for low speed applications.
Ideal power supply for control voltage or a single supply for a MIS motor.
The 24V 120W PSU (PSU024-0120S1X2ABD1A) is perfect for control voltage and driving a single small MIS motor. Single motor applications have less risk of voltage drop and using a single supply for a single motor can be a good solution when looking for an attractive total price for small applications.
• Single-Phase 90~264VAC wide range input
• Width only 40mm
• Up to 130% overload – to allow high acceleration
• High efficiency and low power dissipation.
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Built-in constant current limiting circuit
• Can be installed on DIN rail
• UL508(industrial control equipment) approved
• EN61000-4-2,3,4,5,6,8,11 (EN50082-2) industrial immunity level
• Built-in DC OK LED
• 100% full load burn-in test
توضیحات:
Type
AC/DC
Output
single-output
Technology
switching
Network
single-phase
Mounting
built-in, DIN rail
Certifications
CE
Features
cabinet, compact
Input voltage
Max.: 264 VMin.: 85 V
Output voltage
24 V
Current
3.2 A
Power
76.8 W
