نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

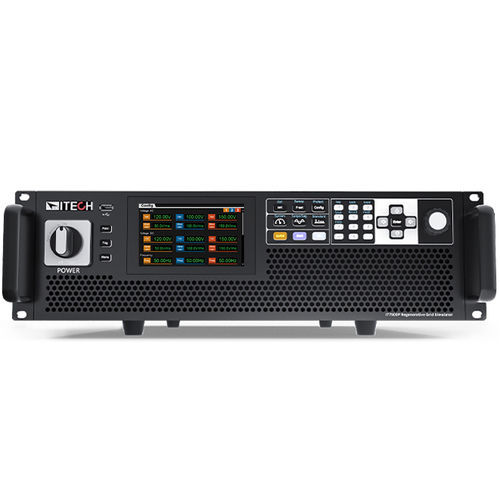

AC/DC power supply IT7900EP
برند:
ITECH ELECTRONIC CO., LTD.
مشخصات:
Adopting advanced SiC technology, the IT7900EP series high-performance Regenerative grid simulator provides an all-in-one test solution that can be used not only as a grid simulator and four-quadrant power amplifier, but also as a four-quadrant regenerative AC/DC electronic load.The full four-quadrant operation, regenerative ability can feedback power to the grid, meet the needs of environmental protection, but also save a lot of electricity and heat dissipation costs. Compact, modular and efficient structure design allows the IT7900EP up to 21kVA in 3U single unit, and its power can be extended to 1MVA after master-slave parallel connection. Colorful touch screen with intuitive GUI allows IT7900EP to directly define different waveforms. The rich operation modes can meet the test requirement of single-phase, three-phase, reverse-phase. It provides high flexibility for testing and can be widely used in many fields such as PV, ESS and EV.
IT7900EP series integrates 3 products, a grid simulator, an AC/DC programmable power supply and a regenerative AC/DC load.
IT7900EP series is not only a full four-quadrant power grid simulator, but also a full four-quadrant AC/DC electronic load. It can operate in all four quadrants. The efficient energy regeneration function makes it good for testing the frequency change of grid-connected PV inverters, voltage transients and anti-islanding protection.
Whether it is used as a grid simulator or a load, in AC or DC mode, the IT7900EP is high efficiently power regenerative.
توضیحات:
Type
AC/DC
Network
single-phase, three-phase
Connection
with USB outlet
Features
compact, modular, 3U
Applications
electronic equipment, test
Other characteristics
programmable, digital, high-performance, analog
Input voltage
Max.: 480 VMin.: 200 V
Output voltage
350 V
Current
Max.: 525 AMin.: 105 A
Power
Max.: 105,000 WMin.: 21,000 W
