نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:
AC/DC power supply ICT1500 series
برند:
Innovative Circuit Technology Ltd.
مشخصات:

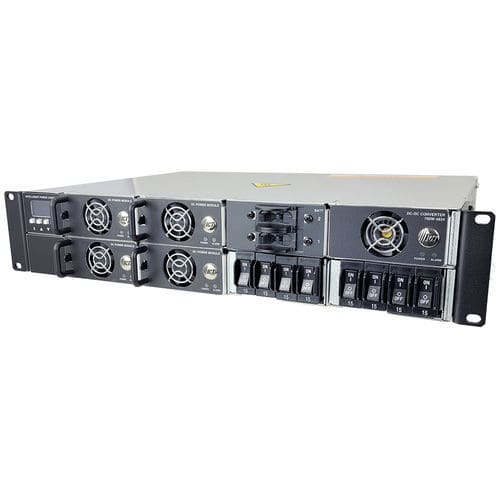

The ICT Hybrid Ultra combines a 48 or 24 volt DC power system with a factory installed 12 or 24 volt DC converter module to provide up to 7,500 watts of maximum power for a flexible hybrid DC solution for wireless network sites. The Hybrid Ultra accepts up to five hot swappable 48 or 24 volt, 700 watts or 1500 watts DC Power Modules. The integrated DC converter provides up to 700 watts of 12 or 24 volts DC output through a separate output bus bar.
FEATURES
Up to five 700-watts or 1500-watts, 48- or 24-volt DC system power modules
Total maximum total output power 7,500 watts
Integrated 700-watt 12-or 24-volt DC power converter
Dual 100-amp battery disconnect breakers
Integrated 150-amp low voltage disconnect with adjustable setpoints
Four or eight fully managed load distribution outputs (25 A max. each)
90 to 95% efficiency
–30°C to +60°C operating temperature range
Standard TCP/IP Ethernet communications provides full remote monitoring and control capabilities
Network security protocols include HTTPS, TLS 1.2, SNMP v1/v2c/v3
User adjustable output voltages and battery charge current limit
Advanced battery management features including state of charge, estimated run-time remaining, battery discharge testing, temperature compensated charging
Alarm reporting via text or email notification
Battery temperature and site monitoring input contacts
2RU 19-inch rackmount form factor
Support for lead-acid and lithium-ion battery types
BENEFITS
Configurable DC power system provides flexibility and scalability to meet application requirements
Integrated 700-watt DC-DC power module provides a secondary voltage for sites with mixed voltages requirements – 48 & 24 or 48 & 12 VDC
توضیحات:
Type
AC/DC
Output
adjustable
Mounting
rack-mount
Input voltage
Max.: 300 VMin.: 100 V
Output voltage
24 V, 48 V
Current
Max.: 54 AMin.: 12.5 A
Power
700 W, 1,500 W
