نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

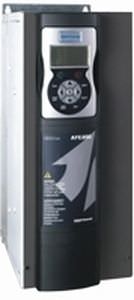

AC/DC power supply AFE200
برند:
GEFRAN
مشخصات:
The AFE200 offers a number of advantages:
-“Clean Power” thanks to the unit power factor and reduced harmonic distortion (<5%)
-Enhanced system dynamics during drive and regeneration
-Considerable energy savings during regeneration transients
-Improved stability of the DC Bus circuit under load changes
-Significant cost-effectiveness with the single power supply system
-Elimination of uneconomical conventional braking systems and braking resistors
The AFE200 range has power ratings of 22kW to 1.65MW for three-phase power supplies of 400VAC to 690VAC.
Ease of use and intuitive programming make it possible for users of any level to exploit the high-level performance of Active Front End technology for a broad range of applications where there is a need for real energy saving.
Options
LCL filter (mandatory)
Pre-load kit, includes resistor and 2 pre-load contactors (mandatory)
External EMI mains filter
Description
Active Front End Regenerative Power Supply Unit, from 22kW to 1.65MW
400V series:
* Power supply: 380VAC -15% …500VAC +5%, 50/60Hz
* Power ratings: from 22kW to 1.2MW
690V series:
* Power supply: 500VAC -10% …690VAC +10%, 50/60Hz
* Power ratings: from 160kW to 1.65MW
* Cosphi ≥ 0,99
* Overload 150% for 60 sec every 5 minutes (Heavy duty) or 110% for 60 sec every 5 minutes (Light duty)
* IP20-rated protection (IP00 size 7 and parallel)
* Certifications: CE. UL, cUL
Features:
– Integration of up to 2 options on board the drive
– GF-eXpress multi-language programming SW (5 languages)
– Integrated KB_ADV programming keypad
توضیحات:
Type
AC/DC
Network
three-phase
Features
external, front end
Protection class
IP20
Input voltage
Min.: 400 VMax.: 690 V
Output voltage
Min.: 400 VMax.: 690 V
Power
Min.: 22,000 WMax.: 1,650,000 W
