نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

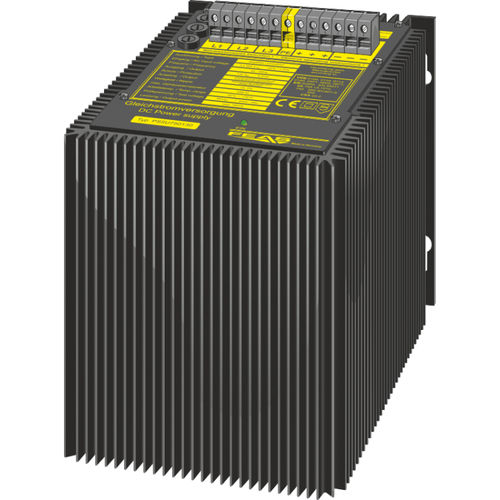

AC/DC power supply PS5U750130
برند:
FEAS GmbH
مشخصات:
The power supplies of the PS5U750130 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or something like that. Power supplies of this type are suitable as well for the most PLC-applications.
By using only few components the uncomplex circuit arrangement guarantees the advantage of a long life span and a high degree of efficiency (>80%).
This power supply is optimally suited for loads requiring high starting current. Because of its robust design, casted in a rugged aluminum housing, it is particularly suitable for being used in rough industrial environment, e.g. in shipbuilding. Furthermore it is quite insensitive to surge voltages.
Output separated according to VDE 0551
Smoothed output
Extra low safety potential PELV (EN 60204), SELV (EN 60950)
Operating status shown by LED
Parallel connection possible
Vibration proof, suitable for the tropics – epoxy resin casted
Conforms to EMC and low voltage directive
Safety acc. to VDE, EN, UL, CSA
توضیحات:
Type
AC/DC
Network
three-phase
Mounting
wall-mount
Other characteristics
robust, high-power
Input voltage
480 V
Output voltage
130 V
Current
6 A
Power
780 W
