نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

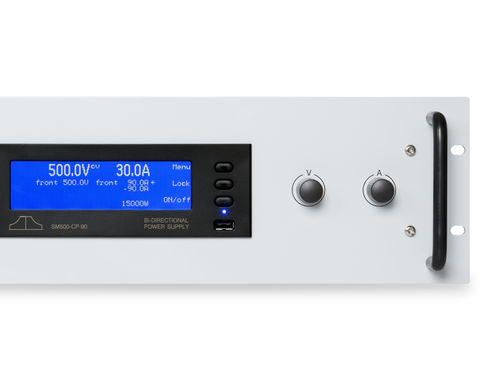

AC/DC power supply SM15K
برند:
Delta Elektronika
مشخصات:
The SM15K Series consists of power supplies with excellent efficiency, stability and flexibility. Thanks to the constant power output, one power supply can cover up to five ranges of traditional power supplies with a rectangular VI-curve.
Standard, the SM15K series can be controlled via the front, web interface or Ethernet. This connectivity can be expanded at any time by our interface cards. Furthermore, the Master/slave interface allows parallel operation of up to 60 units to create high power systems that can supply up to 27000 A. More about those high power systems can be found here.
The SM15K series is standard equipped with regeneration technology: Next to supplying the DUT with power, a SM15K power supply allows the DUT to deliver full power back to the grid. This enables highly efficient and compact test setups for battery, PV and inverter applications.
Features
Flexible output provided by constant power characteristics
Excellent dynamic response to load changes
EMC surpasses CE requirements: low emission and high immunity
Designed for long life at full power
Protected against all overload and short circuit conditions
Low audible noise due to temperature controlled cooling fans
Power Regeneration Technology
Modular Master/Slave with use of interface card and output assembly kit
All-digital control to adapt regulation to load type
Automatic coarse and fine adjusting buttons
Functionalities
Symmetrically providing and sinking 15 kW of power
Efficient power conversion, at least 95 % efficiency at full power
Master-Slave mode operation with up to 60 units and 900 kW output power
Configuration and use via menu-driven display and web interface
توضیحات:
Type
AC/DC
Network
three-phase
Certifications
CE
Features
compact, modular, 3U
Other characteristics
with power factor correction (PFC), digital, bi-directional
Input voltage
Max.: 528 VMin.: 342 V
Output voltage
Max.: 1,500 VMin.: 0 V
Current
30 A, 90 A, 150 A, 450 A
Power
15,000 W
