نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

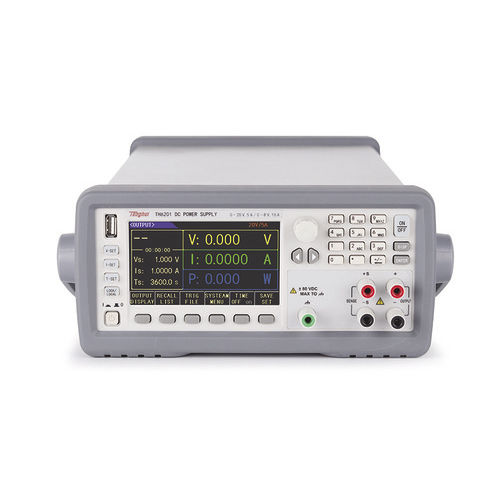

AC/DC power supply TH6201
برند:
Changzhou Tonghui Electronic Co., Ltd.
مشخصات:
Linear Programmable
DC power supply
Rated Voltage/Current/Power:
Range 1: 20V/5A/100W
Range 2: 8V/10A/80W
Features
■ Fresh and simple system settings with Chinese and English operation interfaces
■ High resolution: 24-bit color 4.3-inch TFTLCD, resolution: 480 x 272
■ Linear design and double range output
■ High precision and high stability, low ripple and low noise
■ 1/2 2U super mini size and output and sampling terminal on the front and rear panel
■ Powerful programming ability
100 groups of setting state memory saving and calling
10 trigger files, 100 test sequences per file, loop output of programming
■ Timing output: time (0.1-99999.9s)
■ Use rotary knob and numeric keyboard to set the voltage,current and output time
■ Panel function button with backlight display
■ Remote measurement function, compensation for line voltage drop
■ Output control switch
■ Copy screen function
■ Over voltage, over current protection
■ Intelligent temperature control fan
■ Support standard SCPI communication protocol
■ Software monitoring via computer
Upgrade instrument firmware via USB flash
Application
■ R & D and design verification common test
■ Production line table routine testing and maintenance
■ Automated device integration testing
■ Solar photovoltaic simulation test
■ New power car simulation test
■ Teaching laboratory
توضیحات:
Type
AC/DC
Output
variable-output
Technology
linear
Applications
laboratory
Other characteristics
programmable, digital
Output voltage
Min.: 0 VMax.: 20 V
Current
Min.: 0 AMax.: 10 A
Power
80 W, 100 W
