نام محصول:
منبع تغذیه AC/DC
نام انگلیسی:

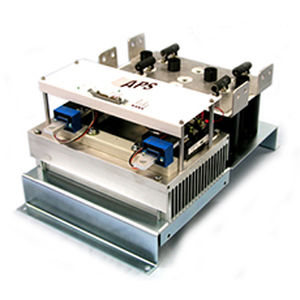

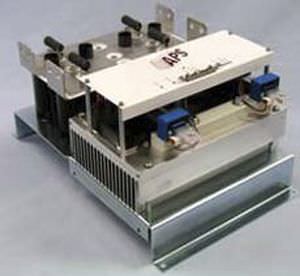

AC/DC power supply IAP100B120 PowerStack
برند:
Applied Power Systems, Inc
مشخصات:
FEATURES INCLUDE
• Multi-Function Power Assembly
• Compact Size –8.00” H X 17.60” W X 11.00” D
• DC Bus Voltages to 850VDC
• Snubber-less operation to 650VDC
• Switching frequencies to over 20kHz
• Protective circuitry with fail-safe opto-isolated fault annunciation, including:
– OverCurrent
– OverVoltage
– OverTemperature
– Short circuit
– P.S. UnderVoltage
• Opto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunity
• Integrated cooling with temperature sensors and feedback
• Many options. SCR Diode Front Ends, Etc.
CONFIGURABLE POWER
The PowerStack is a flexible, highly integrated IGBT based power assembly with a wide range of applications. These include inverters for renewable energy, energy storage, motor controls, switch mode power supplies (SMPS), UPS, welders, etc. The PowerStack can be operated at frequencies to over 20kHz. The PowerStack can be configured as a full bridge or three-phase bridge inverter mounted on an air-cooled or liquid-cooled heat sink. Configurations include options for (full, half or no control) converter input circuitry, inverter output circuitry, cooling and a wide variety of drivers and safety features for the converter front end and IGBT inverter output stage.
To operate at high switching frequencies, the PowerStack utilizes a low inductance laminated bus structure, optically isolated or fiber optically coupled gate drive interfaces, isolated gate power supplies and a DC-link capacitor bank.
توضیحات:
Type
AC/DC, DC/DC
Output
multiple-output
Technology
switching
Network
three-phase
Features
compact, open frame
Secondary function
inverter
Other characteristics
liquid-cooled
Input voltage
Min.: 0 VMax.: 800 V
Output voltage
1,200 V
Current
100 A
