نام محصول:
منبع تغذیه AC/AC
نام انگلیسی:

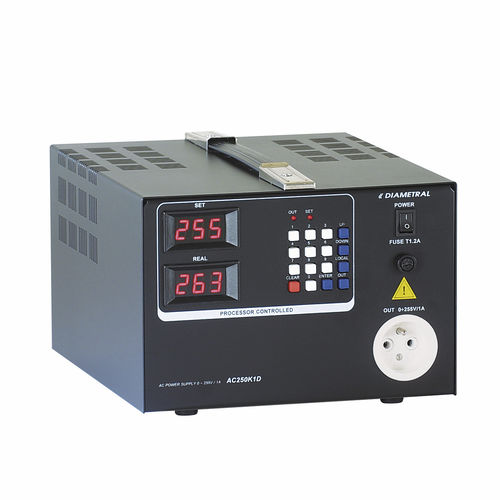

AC/AC power supply AC250K1D
برند:
Diametral a.s.
مشخصات:
A proven series of AC voltage power supplies suitable for powering electrical AC devices in many fields of electrical engineering, electronics and education. The output voltage with a pure sine wave of 50 Hz is obtained by transforming the mains voltage 230V/50Hz with an isolation transformer. Control of the source is possible using the keyboard located on the front panel of the device, or using a personal computer through the D-Control software. This software program allows unlimited time and voltage dependent processes to be defined.
Characteristics of laboratory AC power supplies
Soft-start function.
Output voltage separated from the mains supply.
Output voltage changes in 1V steps.
Control via keyboard.
Control via RS232 by the D-Control program.
User programming of processes depending on voltage and time.
Large, readable, red LED displays.
Sufficiently sized transformer for continuous power supply.
Technical parameters
Stabilization – NO
Stability of the output voltage – according to the stability of the mains
Stability of the output frequency – according to the stability of the mains
Voltage regulation step – 1 V
Control – keyboard or data via RS232 interface
Voltage meter – 3 places LED
Resolution – 1 V
Range – 0 ÷ 290 V
Accuracy of the measuring device – 2.5% of the range
Mains fuse – T 250 V / 1,6 A
Output fuse – T 250 V / 1,25 A
Length of the supply wire – 2 m
Device color – black
Dimensions in mm (H, W, D) – 172 x 244 x 282
Weight – approx. 9.2 kg
Warranty – 24 months
Soft start
The source output is activated when the AC source is switched on after the test has been performed.
توضیحات:
Type
AC/AC
Mounting
tabletop
Secondary function
measuring device
Applications
laboratory
Other characteristics
robust
Input voltage
230 V
Output voltage
Max.: 255 VMin.: 0 V
Current
1 A
Power
160 W
Output frequency
50 Hz
