نام محصول:
منبع تغذیه قابل برنامه ریزی
نام انگلیسی:

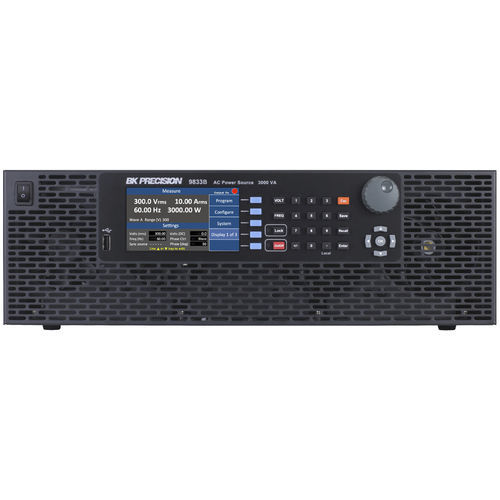

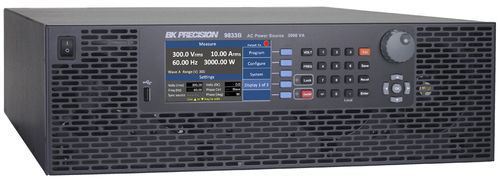

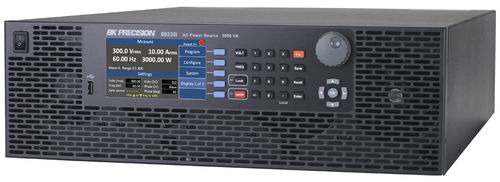

Programmable power supply 9830B series
برند:
B&K Precision
مشخصات:
The 9830B Series programmable AC power sources provide high performance and low total harmonic distortion in a 3U form factor. The addition of positive and negative DC offset voltages expands the AC capabilities to operate in DC and AC+DC output coupling modes. The user can select built-in and user-defined harmonic waveforms or select from standard sine, square or clipped sine outputs.
3-Phase power can be achieved by connecting 3 units of the same model in a master and slave configuration using the optional 3-Phase sync adapters. The frequency range is adjustable from 45 to 600 Hz in 3-phase mode.
Features & Benefits
Low total harmonic distortion meets the IEC 61000-3-2 standard
Comprehensive measurement capabilities Vrms, Arms, Vdc, +Apk, -Apk, inrush current, frequency, power factor, apparent power, reactive power, true power, and crest factor
0.98 power factor at AC input stage
Built-in standard waveforms sine, square and clipped sine
30 built-in THD waveforms
Amplifier mode with 1.2 kHz bandwidth for generating user-defined arbitrary waveforms
Step, List and Pulse modes for generating power line disturbance (PLD) simulations
List mode supports 10 user-defined programs with up to 100 programmable steps
Generate custom harmonic waveforms on a PC and download them to the instrument’s 5 non-volatile memory locations

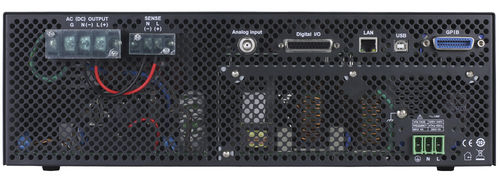

Digital I/O port supporting external trigger, transient indication, failure status indication, remote inhibit, RS232, and external analog output level programming interface
توضیحات:
Type
AC/DC
Output
single-output
Network
single-phase, three-phase
Mounting
tabletop
Features
3U
Other characteristics
programmable, digital
Input voltage
Max.: 300 VMin.: 0 V
Output voltage
Max.: 424 VMin.: 0 V
Current
Max.: 15 AMin.: 5 A
Power
1,000 W, 1,500 W
Output frequency
Max.: 600 HzMin.: 45 Hz
