نام محصول:
منبع تغذیه قابل برنامه ریزی

نام انگلیسی:

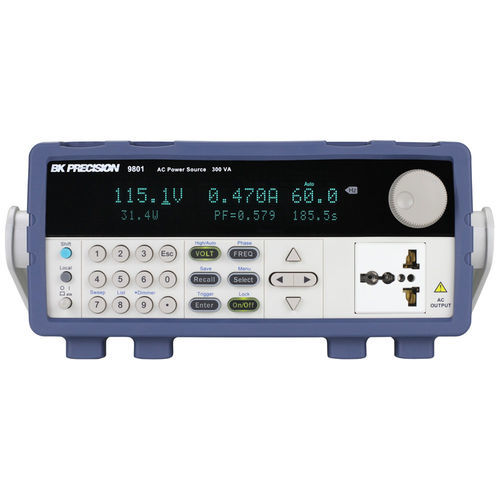

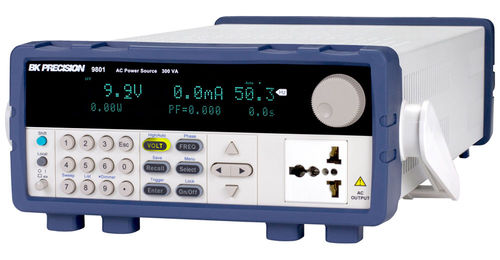

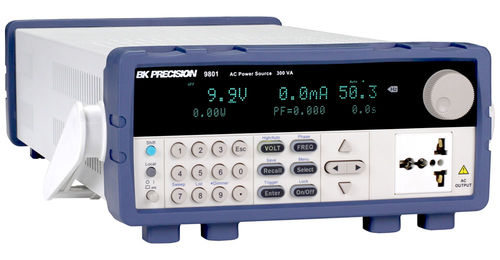

Programmable power supply 9801

برند:
B&K Precision

مشخصات:

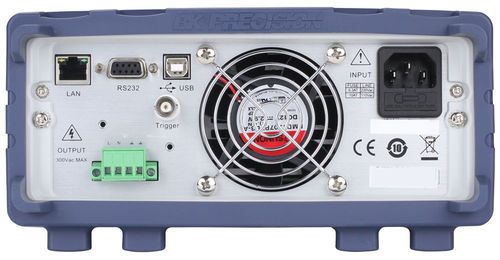

The 9800/B Series is both a programmable AC source and measurement tool. These fully programmable linear AC sources deliver a maximum of 1500 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angle from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak,frequency, power factor (PF), apparent power, true power, and elapsed output time.

The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.

– 0 to 300 V, low distortion AC power source with models delivering a maximum of 1500 VA, 12 Arms / 48 Apeak

– Output frequency adjustable from 45 Hz – 500 Hz

– Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 – 300 V

– Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time

– Adjustable phase angle control

– Built-in PLD and dimmer simulation

– Voltage and frequency sweep mode

– Downloadable LabVIEW driver and soft panel software for remote control

– Standard USB (USBTMC-compliant), RS232, and LAN interfaces

– GPIB optional on select models

Common applications

The 9800/B series of AC power source is suitable for evaluating transformers, TRIACs, SCRs, and passive components as well as production, R&D, service, and pre-compliance testing.

توضیحات:
Type
AC/AC

Output
single-output

Technology
linear

Mounting
tabletop

Other characteristics
programmable

Input voltage
110 V, 220 V

Output voltage
Max.: 300 VMin.: 0 V

Current
Max.: 9 AMin.: 0 A

Power
300 W

Output frequency
Max.: 63 HzMin.: 47 Hz
