نام محصول:
منبع تغذیه شبیه ساز آرایه خورشیدی
نام انگلیسی:

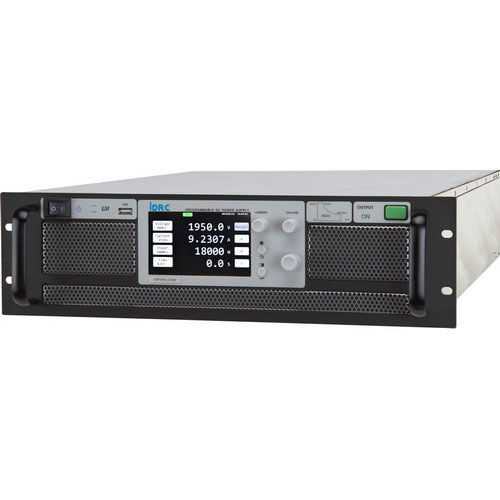

Solar array simulator power supply DSP-WS series
برند:
iDRC
مشخصات:
Input & Output
– All Wide Range characteristics; AC mains 180~460V, DC output 0~1050V/30A to 0~1950V/23A.
– 3-phase input.
– Output power 10kW , 12kW , 15kW, 18kW total 9 models.
– Easy to integrate 100 units to form a 1800kW power supply.
– Active power factor correction, PF>0.99(480V input).
– Excellent efficiency is nearly 96 %. (18kW models)
Electrical
– With solar array simulation function, imitate output characteristic of various Solar Array.
– Curve Mode and Table Mode two types I/V curve, up to 8192 setting points to form a smooth and realistic waveform.
– Graphic control software meets EN50530 .
– Simulation of IV curve of solar array in different temperature and lux
– Static & Dynamic MPPT efficiency test(accumulated energy method) and log file generating.
– Real time Maximum Power Point Tracing via remote interface.
– Versatile working modes: I/V curve, constant voltage, constant current and constant power.
– Constant Voltage(CV), Constant Current(CC), Constant Power(CP) and I/V Curve , CV. CC. or CP working priority setting.
– The setting of I/V curve can download to DSP-WS series via interface or memory stick to USB port.
– Multi-tasking function allows to control up to 12 units of DSP-WS Solar Array simulator.
– With internal resistance adjustment function to simulate characteristic of battery
– MHz switching frequency, extremely low output ripple and noise low.
– Fast boot time of 10 seconds or less.
– High performance and high efficiency at lower temperature.
– Adjustable output voltage, current and power.
توضیحات:
Type
AC/DC
Output
adjustable
Network
three-phase
Protection
with short-circuit protection, with overcurrent protection, with overload protection, with overheating protection
Mounting
tabletop
Certifications
CE
Features
3U
Secondary function
solar array simulator
Applications
electronic equipment, for industrial applications, laboratory, for welding applications, for railway vehicles, for medical applications, for automation, workstation, for medical applications, for electrical networks, for marine applications, for railway applications, emergency fuel cell
Other characteristics
programmable, with power factor correction (PFC), wide input range, high-voltage, safety, high-power, high-performance, MPPT
Input voltage
Max.: 460 VMin.: 180 V
Output voltage
Max.: 1,950 VMin.: 650 V
Current
Max.: 46 AMin.: 23 A
Power
Max.: 18,000 WMin.: 10,000 W
