نام محصول:
منبع تغذیه سه گانه
نام انگلیسی:

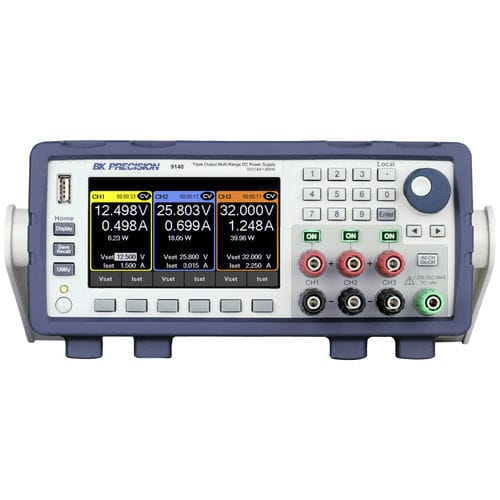

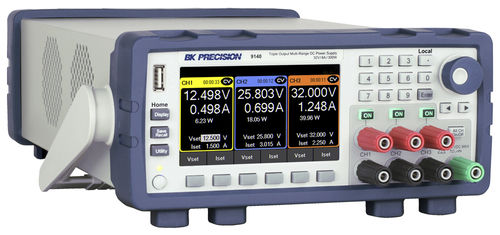

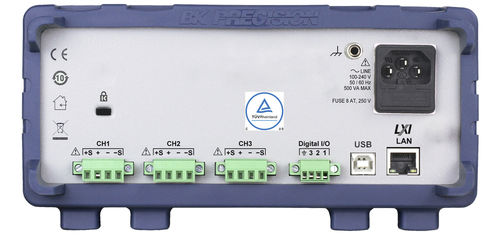

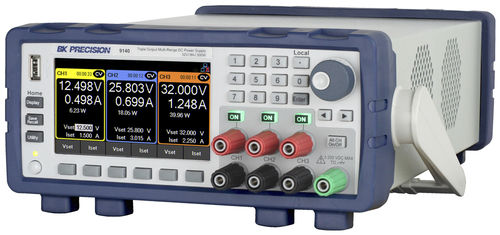

Triple-output power supply 9140
برند:
B&K Precision
مشخصات:
The 9140 Series triple output multi-range DC power supplies combine industry-leading power density and performance with an extensive set of features in a compact 2U form factor. Three isolated output channels each produce 100 W of clean power with low ripple and noise characteristics. Combine channels for up to 300 W total output power.
Powerful list mode programming enables users to set up and execute complex test sequences directly from the front panel. Multiple outputs, USB data logging, and comprehensive protection features make these power supplies suitable for a wide range of benchtop or test system applications.
Features
– Three independent, floating output channels for up to 100 W per channel or 300 W total
– High power density, compact 2U half-rack form factor
– Multi-ranging operation
– Low output ripple and noise down to 1 mVrms
– Combine outputs to increase voltage up to 180 V or 24 A (depending on model)
– Advanced and easy to use list mode programming
– Channel coupling, tracking, configurable delays
– Direct data logging to USB flash drive
– Thermostatically-controlled fans for quiet operation
– Adjustable voltage and current slew rates
– OVP, OCP, OTP, and key-lock protections
– USB (USBTMC-compliant) and LXI compliant LAN standard, GPIB option
– LabVIEWTM, IVI-C, and IVI.NET drivers provided
– Operating software available
– cTUVus certification mark
توضیحات:
Type
AC/DC
Output
triple-output
Features
compact, 2U
Other characteristics
benchtop, isolated
Input voltage
Max.: 240 VMin.: 100 V
Output voltage
Max.: 32 VMin.: 0 V
Current
Max.: 8 AMin.: 0 A
Power
300 W
Output frequency
Max.: 63 HzMin.: 47 Hz
