نام محصول:
منبع تغذیه با ولتاژ بالا

نام انگلیسی:
High-voltage power supply 2290 series

برند:
Tektronix

مشخصات:

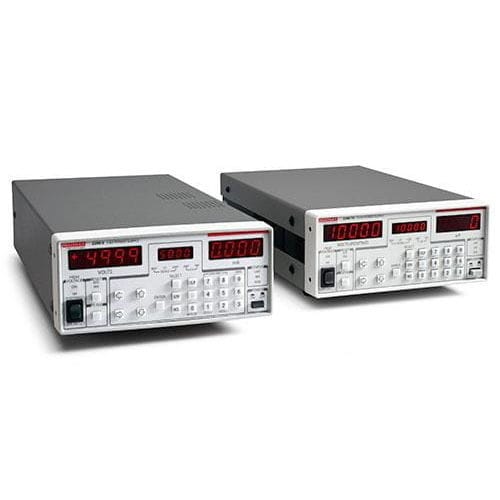

Series 2290 High Voltage Power Supplies are ideal for high voltage device and material testing, as well as high energy physics experiments. Choose the Model 2290-5 Power Supply for voltage outputs up to 5000V or the Model 2290-10 Power Supply for up to 10,000V. These supplies measure both output voltage with 1V resolution and output current with 1μA resolution. In addition to the voltage and current output displays, a third display shows one of four settings: output voltage, voltage limit, current limit, or current trip.

• Low output noise

• Safety interlock

• IEEE-488 programmable

• Optional protection module

Improves sourcing precision and measurement sensitivity; selectable filters on the 5kV supply reduce noise to less than 3mVRMS.

Ensures that the output voltage is disabled if a high voltage test fixture access door is open.

Allows creating an automated high voltage test system.

Clamps the voltage across a low voltage measurement instrument, such as a Series 2600B SourceMeter® SMU Instrument, to a maximum value of 200V even when a device under test (DUT) breaks down, preventing damage to the low voltage instrumentation.

توضیحات:
Type
DC/DC

Output
current output

Other characteristics
safety, high-voltage

Input voltage
Max.: 264 V100 V, 120 V, 240 VMin.: 90 V

Output voltage
Max.: 10,000 VMin.: 50 V

Current
1,000 mA, 5,000 mA

Power
55 W, 75 W

Output frequency
Max.: 300,000 HzMin.: 300 Hz
