نام محصول:
منبع تغذیه با ولتاژ بالا
نام انگلیسی:
High-voltage power supply MMC series
برند:
shaanxi Wisman High Voltage Power Supply
مشخصات:
APPLICATIONS
APD(Avalanche Photo Diode),Electron Multiplier,Hibrid Photo Detector,Bar Code Scanners,Bomb Detectors,Cellular Electrophoresis,Detectors,E-chuck(Electrostatic Chuck)
ESD(Electrostatic Discharge Testing),Flow cytometry,FPD(Flat Panel Ditector),Gamma Cameras,Geiger Counter,GM Tubes(Geiger Mueller Tubes),Hi Pot Testing,Immunocytology,Ion Mobility Spectrometry(IMS),Ionizers,Leak Detector, PMT,MM,radiation counter,Electron Beam/Ion Beam,Mass spectrometry,PhotoMultiplier Tubes,Scintillators,Electron Guns,Ion Guns,Nuclear Instruments, Electrostatic lenses,Spectroscopy,Microchannel Plates

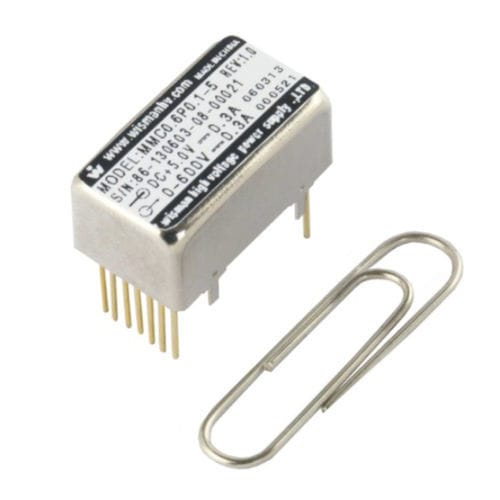

Wisman’s MMC miniaturized module with low-noise and high-stability are intended for photomultiplier tubes, mass spectrometers, and electron microscopes. . The price is competitive.
MMC is a printed circuit board mounting high voltage power supply with small size, ultra-low ripple 5mV,10ppm temperature coefficient and six-shields . It is has the function of overcurrent ,short circuit and arc protection.
SPECIFICATIONS
Input Current:
with no load:5mA
with full load:50mA
Regulation:
Line Regulation :0.001% (typical )
Load Regulation :0.01% (typical)
Stability: 0.001%/hour
Ripple / Noise (p-p):
5mV(maximum voltage and maximum current)
Output Voltage Control:
By external controlling voltage (0 V to +2.5 V)
Controlling Voltage Input Impedance:100KΩ
Output Voltage Rise Time : 50ms(0-99%)
Temperature Coefficient: 10ppm/℃
temperature:
Working temperature:
commercial grade: -10℃ to +50℃(case temperature)
industrial grade G：-25℃ to +65℃(case temperature)
Top grade T：-40℃ to +95℃(case temperature)
Storage temperature：
commercial grade S: -20 ℃ to +70℃
Industial grade G:-25 ℃to +95 ℃
توضیحات:
Type
DC/DC
Output
single-output, current output, adjustable
Technology
technology
Protection
with short-circuit protection, with overcurrent protection, with overload protection, with overheating protection
Connection
with safety terminals
Certifications
CE, ISO
Features
compact, modular, miniature
Applications
for medical applications, for industrial applications, laboratory, for telecommunications equipment, electronic equipment, for medical applications, emergency, for anti-static equipment, for X-ray sources, test, for laser applications, for electron guns, for plasma cutting, for infrared detector
Other characteristics
with power factor correction (PFC), high-voltage, low-noise level, safety, high-power, high-performance, high-frequency, with emergency power supply
Input voltage
Max.: 25 VMin.: 4.5 V
Output voltage
Max.: 0.6 kVMin.: 0.1 kV
Current
Max.: 1 mAMin.: 0.17 mA
Power
0.1 W
