نام محصول:
منبع تغذیه آداپتور
نام انگلیسی:

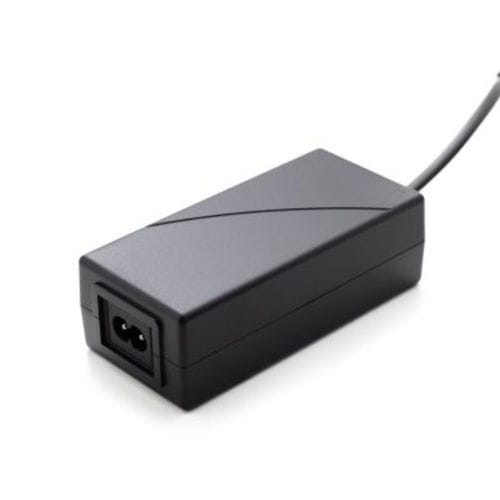

Adapter power supply SM43
برند:
modico systems
مشخصات:
Technical Data
– output short-circuit protection
– Over current protection
– Over voltage protection
– Over temperature protection (Safety NTC-temperature-sensor)
– Cut off current approx.8A
– Efficiency Level VI
– Stand by Power < 0,3W
– Protection type IP20
– Protection class II
– Intermitted mode with 10 % duty cycle with max. continuous use of 2 min
– Housing colour black RAL 9005
– LED “ON“ indicator (green)
– Plug-in power cable on secondary side C7 outlet

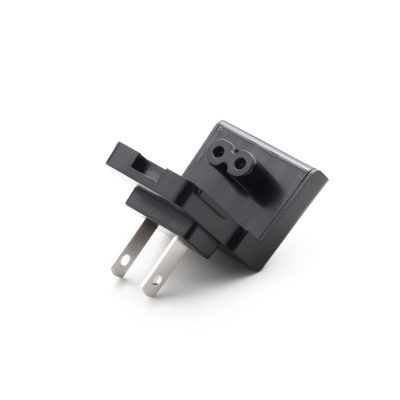

– Plug-in country adapter for Wall adapter applications
– Dimensions (lxwxh) 118mmx60mmx39mm
– weight 250g
Options

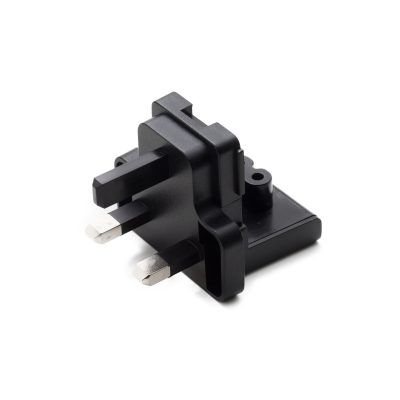

– country specific versions plug adapters EU flat plug, UK and US
– other country adapters/cable on request
Standards
– EN61000-4-2
– UL1310
– EN55014
– EN55022
– EN55024
– FCC
– EN60950
توضیحات:
Type
AC/DC
Output
single-output
Technology
switching
Protection
with short-circuit protection, with overcurrent protection, with overload protection
Mounting
plug-in
Protection class
IP20
Other characteristics
adapter, safety
Input voltage
Max.: 240 VMin.: 100 V
Output voltage
29 V
Current
8 A
Power
160 W
