نام محصول:
مقاومت در برابر هسته جامد
نام انگلیسی:
Solid-core resistor N8064B series
برند:
NGI Tech
مشخصات:

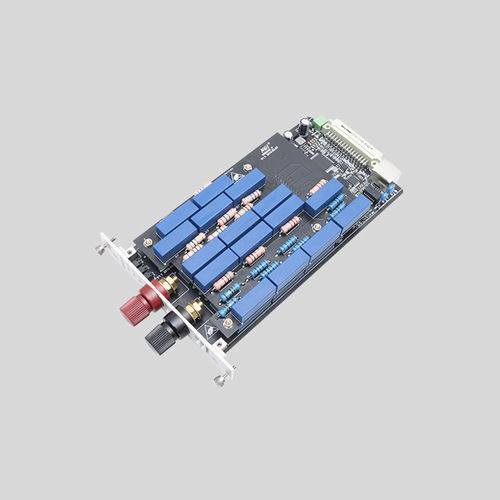

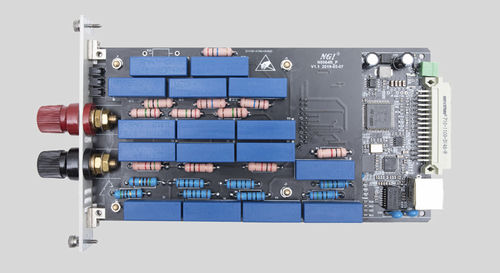

Programmable variable resistor N8064B series single channel programmable resistance card
Its maximum withstand voltage up to 1000V. The resistance setting range is 200kΩ ~ 61MΩ. It allows flexible settings according to different applications. During application, a fan is required for cooling. The total input power should not exceed 3W.
Main Features
●High density programmable resistance card
●Resistance matrix switch withstand voltage up to 1000V
●Control circuit and resistance array electrical isolation @ 1000V
●Different specifications customization service available
●100M Ethernet communication
For more information，Please visit our website
توضیحات:
Technology
solid-core
Electrical characteristics
low-power, adjustable, variable, analog, low-noise level
Mounting
for integration
Applications
for electronics, for telecom applications, test, for laboratories
Other characteristics
compact, high-precision, high-accuracy, chassis, programmable
Resistance
Max.: 61,000 kOhmMin.: 200 kOhm
Power rating
Max.: 3 WMin.: 0 W
