نام محصول:
مقاومت در برابر فیلم نازک
نام انگلیسی:

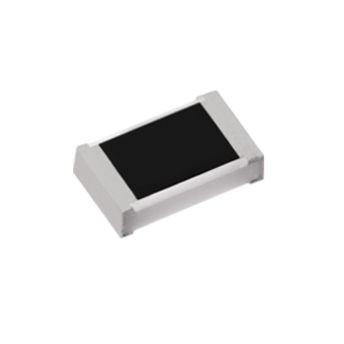

Thin-film resistor ERJH2CF1R00X
برند:
Panasonic Electric Works Corporation of America
مشخصات:
Panasonic’s ERJ-Hxx Series Automotive Grade Thick Film Chip Resistors feature a maximum Category Temperature of 175°C and a maximum Rated Operating Temperature of 105°C. The ERJ-Hxx Series is AEC-Q200 compliant, ensuring strict quality control standards are in place to enforce optimal quality and reliability. The ERJ-Hxx Series Resistors offer a small size, higher power Resistor alternative that provides enhanced flexibility of PCB design by reducing solder-joint crack risk. This series is ideal for use in automotive, ICT, general industrial applications, and more.
Highly Reliable Due to Panasonic’s Metal Glaze Thick Film Resistive Element and High Temperature Electrodes Structure
Category Temperature: -55°C to 175°C
Maximum Operating Temperature: 155°C to 175°C
Rated Operating Temperature: 70°C to 105°C
Smaller Size, Higher Power Alternatives
High Joint Reliability
Tape Packaging Available for Compatibility with Placement Machines
Suitable for Both Reflow and Flow Soldering
RoHS / REACH Compliant
Reference Standards: IEC 60115-8, JIS C 5201-8 and JEITA RC-2134C
AEC-Q200 Compliance Ensures Strict Quality Control Standards Are Being Enforced
Panasonic components specified as AEC-Q200 Compliant are consistently designed into automotive systems. However, today’s Design Engineers are specifying AEC-Q200 components to meet the high-quality standards of devices beyond automotive applications.
Parts that pass the AEC tests are qualified, high-quality components that can be used in critical environments. Therefore, there should be no need to conduct other component level tests saving both time and expense.
توضیحات:
Technology
thin-film
Electrical characteristics
power
Other characteristics
reference, high-temperature
Resistance
Max.: 300,000 OhmMin.: 1 Ohm
Power rating
0.1 W, 0.125 W, 0.25 W, 0.5 W
