نام محصول:
مقاومت در برابر فیلم فلزی
نام انگلیسی:

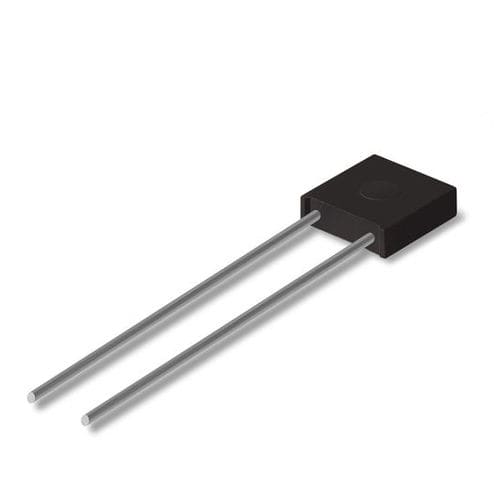

Metal-film resistor MR
برند:
MEGATRON Elektronik GmbH & Co. KG
مشخصات:
Precision Resistor MR – metal foil
Metal foil resistor with extended temperature range of -65 °C…+175 °C, power rating up to 0,5W @125 °C and wide TC range of ±1ppm…±15ppm
Temperature coefficient up to ±1ppm/°C
Very high long-term stability
Resistance values from 1Ω…400kΩ
Exact values up to ±0,005% resistance tolerance
Low current noise
Robust epoxy housing
MR Series Resistors have an excellent reliability, also under difficult environmental conditions. With a TC value of up to ±1ppm/°C, the resistance stands out among its peers. In addition, the metal foil resistance is characterized by an increased temperature range of -65°C..+175°C and a power rating of up to 0,5W @125°C. Typical applications with highest demands on long-term stability are weighing systems, testing bridges, high precision amplifier, steering control systems. They are in use in other industries like medicine, aviation and automation.
توضیحات:
Technology
metal-film
Mounting
radial-lead
Other characteristics
precision, rugged
Resistance
Max.: 400,000 OhmMin.: 1 Ohm
Power rating
0.5 W
