نام محصول:
مقاومت در برابر زخم سیم
نام انگلیسی:

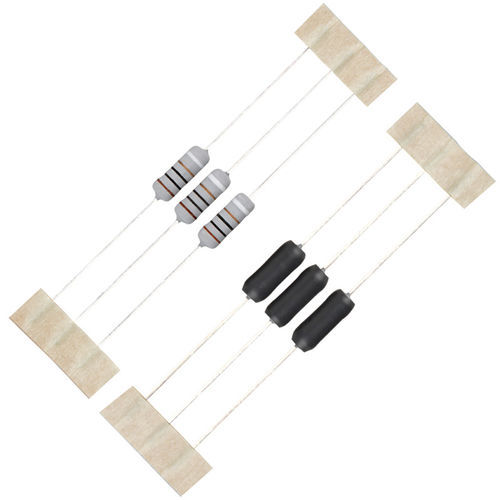

Wire-wound resistor RXF21SB series
برند:
Xiamen SET electronics Co.,Ltd
مشخصات:
Fusible Wirewound Resistor (RXF) is a power resistor, which is made by winding a resistive element on a ceramic core, and the core is coated by insulation coating. As a Protective Component, RXF works as a fixed resistor in normal operation, and is designed to open the circuit under the overload condition.
SETsafe | SETfuse RXF is attractive owing to its Miniaturized Size and Superior Properties and it has already been approved by UL, cUL, CQC, VDE. It also complies with RoHS, REACH.
● Epoxy Resin Coating
● Silicone Resin Coating
● Low Leakage Current
● Bidirectional and Symmetrical V/I Characteristics
● Operating Temperature Range: Low Temperature: -40 °C, High Temperature: 125 °C
● RoHS & REACH Compliant
● Switch Mode Power Supply (SMPS)
● Adapters
● LED Drivers
● Small Power Home Appliances
توضیحات:
Technology
wire-wound
Electrical characteristics
power, overload
Mounting
fixed, through-hole
Applications
protective
Other characteristics
fuse
Resistance
Max.: 800 OhmMin.: 0.27 Ohm
Power rating
1 W
