نام محصول:
مقاومت در برابر زخم سیم

نام انگلیسی:

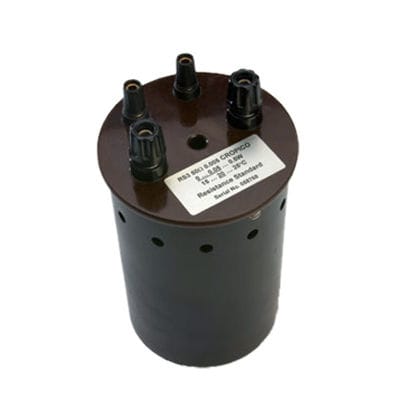

Wire-wound resistor RS3 series

برند:
Seaward

مشخصات:
4 terminal construction, high stability resistance standard with wide range

– Excellent load coefficient

– Special values made to order

The RS3 range of resistance standards are constructed using carefully selected low temperature coefficient Manganin or Zeranin wire, depending on the value, mounted on formers which have a high mechanical stability. The wires are wound in a strain free manner and heat treated to remove any stresses. They are also artificially aged under the strictest control. The result is a standard of high quality with long term stability and permanence of calibration combined with a low temperature coefficient.

We offer the widest range of standard values available today. In addition we are able to manufacture for special applications (e.g. Pt100 simulation) special values to customer requirements.

The RS3 range also offers a high current carrying capability which makes them ideal for applications where precise current needs to be measured.

توضیحات:
Technology
wire-wound

Electrical characteristics
high-current

Other characteristics
reference

Resistance
Max.: 1,000,000 OhmMin.: 0.0001 Ohm
