نام محصول:
مقاومت در برابر زخم سیم
نام انگلیسی:
Wire-wound resistor ASTRO2
برند:
MEGATRON Elektronik GmbH & Co. KG
مشخصات:

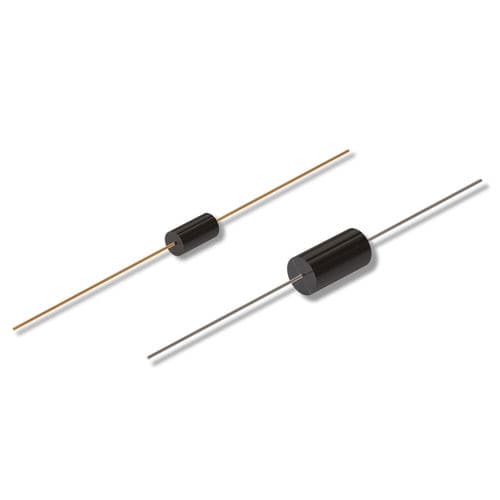

Precision Resistor ASTRO2 – wirewound
Wired resistor with extreme wide resistance range of 0.01Ω..6MΩ, tolerance up to ±0.005% and max. working voltage of 900V
Resistance range of 0,01..6MΩ
Exact values up to 0,005% resistance tolerance
Temperature coefficient up to ±10ppm/°C
Very long-term stable ±100ppm/year
ASTRO2 precision resistors were developed for critical and demanding applications, which require a high precision and stable resistance value. Multi chamber (bifilar) windings secure a low inductance. During the production process the resistors are trimmed in a special aging process, which increases the long term stability. Windings and the Epoxy coating are especially selected to guarantee the best temperature behaviour. Typical applications are measurement devices, laboratory instruments but also current sensing or low power applications.
Resistance range of 0,01..6MΩ
Exact values up to 0,005% resistance tolerance
Temperature coefficients up to ±10ppm/°C (on request up to ±1ppm/°C)
Resistance sets up to ±0,001% and ± 0,5ppm/°C
On request, special lead wire bending
Very stable for a long time ±100 ppm/year (on request in a very stable version with ±20ppm/year)
On request with Balco or platinum connectors for high TC values
On request in very high or low TC configurations from -20ppm/°C to +6000ppm/°C
توضیحات:
Technology
wire-wound
Electrical characteristics
low-inductance
Mounting
axial-lead
Applications
current-sense, for laboratories
Other characteristics
precision
Resistance
Max.: 6,000 kOhmMin.: 10 kOhm
Power rating
1.5 W
