نام محصول:
مقاومت در برابر زخم سیم
نام انگلیسی:
Wire-wound resistor 1240
برند:
burster präzisionsmesstechnik gmbh & co kg
مشخصات:

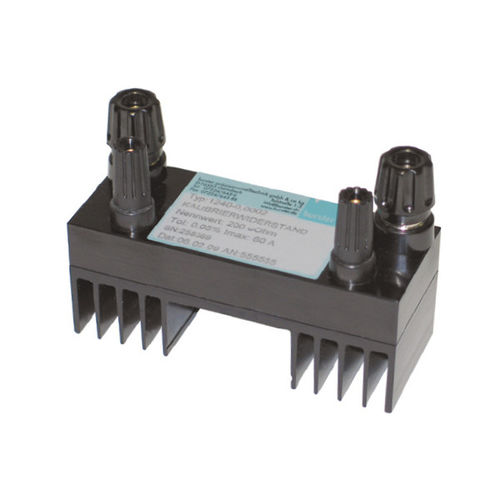

Calibration resistor – 1240
The 0.02 class calibration resistors excel in their modern design and small mechanical dimensions. Their ruggedness also ensures a long life. Calibration resistors of the 1240 series are used wherever very constant operating standards are required.
Typical main areas of application therefore include:
When normal resistors prove to be too large scale
For test and calibration of resistance measurement devices
For tests on electrical temperature measuring equipment
For laboratory setup of a Wheatstone bridge
As shunt resistor for accurate current measurement
As part of standard equipment in research laboratories
For a large part of measurements in calibration laboratory.
A test certificate according to ISO 9000 with detailed technical data is included in the scope of delivery of these high-quality calibration resistors.
DKD/DAkkS Calibration Certificate
The calibration laboratory D-K-15141-01-00 at burster praezisionsmesstechnik gmbh & co kg is supervised by DAkkS (Deutsche Akkreditierungsstelle GmbH) according to ISO 17025.
It can prove its status by a certificate and is authorized to issue calibration certificates with the DAkkS logo and with the DKD logo (Deutscher Kalibrierdienst). These calibration certificates are internationally approved by multilateral contracts.
Manufacturer Calibration Certificate
Please refer to DKD/DAkkS Calibration Certificate but with reduced accuracy.
Features:
– Range 10 μΩ … 100 kΩ
– Low capacitance and low inductance design
– Suitable for direct current and technical frequencies
– High stability < ± 0.01 % over years
توضیحات:
Technology
wire-wound
Electrical characteristics
low-inductance, shunt
Applications
for laboratories
Other characteristics
calibration
Resistance
Max.: 100,000 OhmMin.: 0.0001 Ohm
Power rating
2.5 W
