نام محصول:
مفصل لوله فلزی
نام انگلیسی:
Metal pipe expansion joint M series
برند:
Macoga, S.A
مشخصات:
These expansion joints are made of one single bellows element with end connections.
Regardless of accessories, such as liners and covers, this model absorbs all of the movements in any one length of piping but it is mainly used to absorb axial movements.

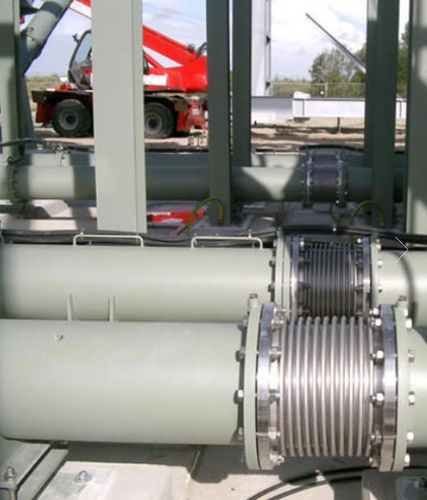

It does not restrain pressure thrust so adequate anchors and guides must be provided and they can be used only in piping systems that incorporate correctly designed anchors and pipe alignment guides.

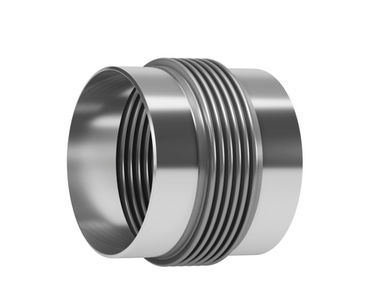

MWA
This type of Expansion Joint is made up of one single bellows provided with welding ends.

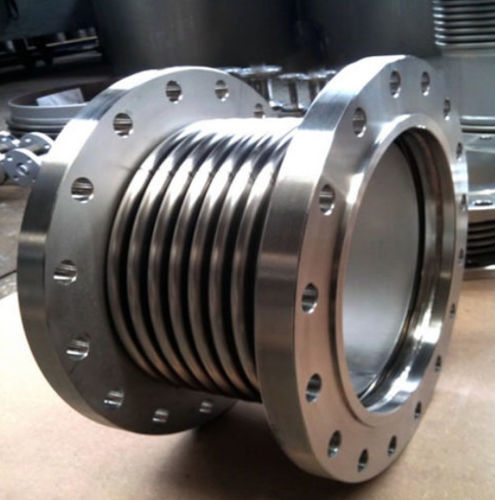

MFA
This type of Expansion Joint is made up of one single bellows equipped with fixed flanges.

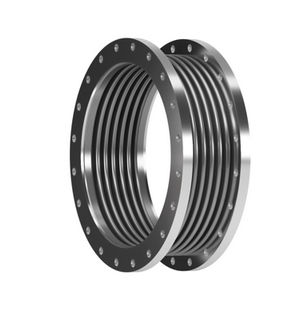

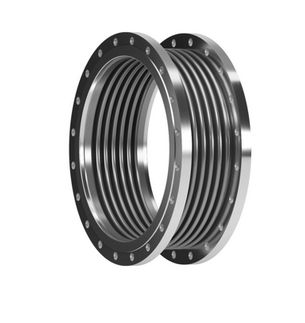

MFG
This type of Expansion Joint is made up of one single bellows equipped with floating flanges.
MTE
This type of Expansion Joint is made up of one single bellows fitted with external BSP or NPT threads.
MTI
This type of Expansion Joint is made up of one single bellows fitted with internal BSP or NPT threads.
MQP
Quick Press MQP Type Metal Expansion Joints for HVAC (Heating, Ventilating & Air Conditioning) systems.
توضیحات:
Material
metal
Configuration
round
Installation system
flange, screw-in, weld-on
Nominal diameter
2,400 mm(94.49 in)
Operating temperature
343 °C, 538 °C, 729 °C(649.4 °F, 1,000.4 °F, 1,344.2 °F)
Length
620 mm(24.41 in)
