نام محصول:
مفصل لوله فلزی
نام انگلیسی:
Metal pipe expansion joint VARICOMP® series
برند:
GEA Tuchenhagen
مشخصات:

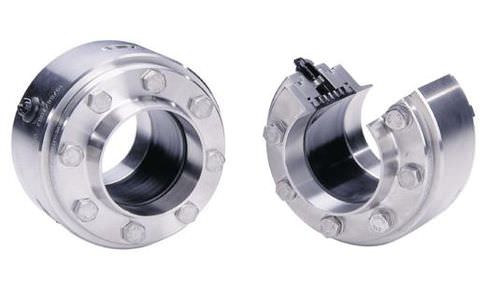

Expansion Compensator VARICOMP®
The innovative VARICOMP® Expansion Compensator is used for compensating expansions and tensions in pipe systems resulting from temperature differences. Due to its exceptional construction principle, it is additionally suitable for aseptic process applications. The decisive advantage of the VARICOMP® Expansion Compensator is the pocket-free design with drain characteristics – an indispensable feature for optimal cleaning in the CIP/SIP method.
Special Features
• Suitable for hygienic and aseptic applications
• EHEDG certified
• Pocket-free design
• CIP / SIP-able
• Short, compact design
• Compensation element available in EPDM and FKM
• Compensation distance (tension / compression) limited by metallic stop
• Max. compensation distance 8mm
• Compensation element with integral vulcanized support rings for high pressure loads
توضیحات:
Material
metal
Configuration
round
Installation system
flange
Applications
construction
Nominal diameter
80 mm(3.15 in)
